66W08 LEV

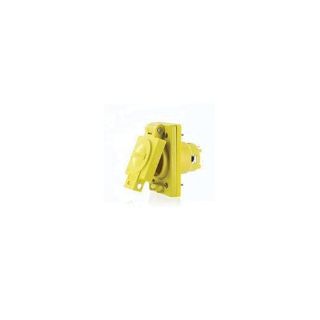

Picture of 66W08 LEV
Actual Product May Vary From Image

Product Details

Manufacturer:
Leviton Manufacturing
Manufacturer part number:
66W08
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 5-7 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$303.29 / EA

Description

Brand Name

Leviton®

Type

Grounding Non-NEMA

Description

Leviton® Wetguard® Single Locking Inlet, Grounding Non-NEMA, 125/250 VAC, 20 A, 3 Pole, 3 Wires, Industrial Grade, NEMA 4/4X/12/IP66 Enclosure, -40 to 60 deg C, Screw Clamp Terminal, Valox® Polybutylene Terephthalate, Yellow, 4.63 in H x 3.13 in W x 3.52 in D Dimensions

Standards

ANSI C-73 | UL498 | CSA C22.2 No.42 | NOM 057 | UL94 V-2 Flammability Rating

Features

  • Withstands 2000 VAC per UL 498 dielectric voltage
  • Maximum 30 deg C after 250 cycles overload at 200% rated current temperature rise
  • Santoprene TPV cover gasket
  • Stainless steel torsion spring mechanism
  • Electroless nickel coated brass blades/contacts, terminal clamps, terminal screws
  • Stainless steel, non-magnetic mounting and assembly screws
  • 16 to 10 AWG terminal accommodation
  • Corrosion resistant and wetguard

Specifications

Amperage Rating:20 A
Color:Yellow
Country of Origin:US
Dimensions:4.63 in H x 3.13 in W x 3.52 in D
Enclosure:NEMA 4/4X/12/IP66
Grade:Industrial
Material:Valox® PBT
Number of Poles:3
Number of Wires:3
Temperature Rating:-40 to 60 deg C
Terminal Type:Screw
Voltage Rating:125/250 VAC
