67W07 WOO

Name: 67W07 WOO
Brand: Molex/Woodhead
SKU: 67W07 WOO
Price: 125.79 USD
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Molex/Woodhead

Manufacturer part number:

67W07

CBT Inventory

Vendor Inventory

Availability:

Ships in 5-7 days.

Estimated dates are contingent upon manufacturer stock.

$125.79 / EA

Description

Brand Name

Woodhead®

Type

Female Single

Description

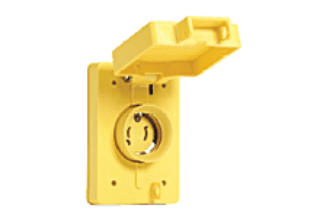

Woodhead® Locking Receptacle, Female Single, Series: 130146, 250 VAC, 20 A, 2 Pole, 2 Wires, NEMA L2-20 NEMA Rating, IP67 Enclosure, -40 to 75 deg C, Yellow

Standards

CSA File No. LR6837 | UL File No. E68122

Features

Multiple seal plug/connector interface keeps out contaminants resists vapor and water from high pressure wash down up to 1000 psi
Color coded 1/4 in terminal screws pre-set in open position, ready to wire
Wire screw terminals are tri-drive to be used with straight blade, Phillips and square-drive screw drivers
Floating blade construction provides self-alignment, and a better mechanical and electrical connection minimizing wear and heat generation
Transparent wiring guide to verify all wire strands are in place before securing wire
Captive, tri-drive head, stainless steel, speed screw provides easy assembly and long life
Three piece strain relief seals cable without damaging the cable

Specifications

Amperage Rating:	20 A
Color:	Yellow
Country of Origin:	MX
Enclosure:	IP67
NEMA Rating:	NEMA L2-20
Number of Poles:	2
Number of Wires:	2
Series:	130146
Temperature Rating:	-40 to 75 deg C
Voltage Rating:	250 VAC
