67W09 LEV

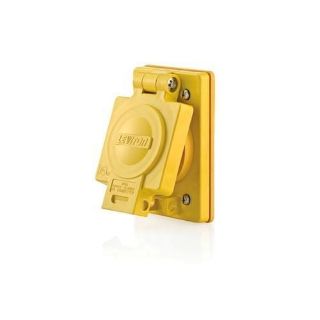

Picture of 67W09 LEV
Actual Product May Vary From Image

Product Details

Manufacturer:
Leviton Manufacturing
Manufacturer part number:
67W09
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 5-7 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$261.46 / EA

Description

Brand Name

Leviton®

Type

3-Phase Non-Grounding

Description

Leviton® Wetguard line of industrial watertight wiring devices are the most versatile, well-engineered watertight devices on the market. They meet IP67 and NEMA ratings for water ingress protection, and offer many significant advantages over competitive brands.
Leviton® Locking Receptacle, 3-Phase Non-Grounding, 120/208 VAC, 20 A, 4 Pole, 4 Wires, Industrial Grade, IP66 Enclosure, -40 to 60 deg C, Back Wire Terminal, Nylon, Yellow, 4.63 in H x 3.13 in W Dimensions

Application

Commercial Applications

Standards

UL Listed

Features

  • Box mounting
  • Non-NEMA rated
  • 18 to 10 AWG terminal accommodation
  • Flush mount
  • Withstands 2000 VAC per UL498 dielectric voltage
  • Full-rated current limiting
  • Maximum 30 deg C temperature rise after 250 cycles OL at 200% rated current
  • V2 per UL94 flammability rated
  • 18 to 8 AWG solid or stranded wire terminal accommodation
  • Ratings and NEMA ID permanently marked on device for identification
  • Nylon face material, 0.04 in thick line contacts, 10-32 brass terminal screws, 8-32 grounding screws and nickel plated brass strap
  • Receptacles with cover closed or used with wetguard plug connected meet IP66 standards
  • Accept 14 to 8 AWG solid or stranded wire
  • Fit all standard FD boxes
  • Maintains IP66 water tight rating when box mounted using Leviton back boxes 452CR, 453CR, or 454CR
  • Can be panel mounted (not IP66 rated)
  • Brass-hot, green-ground, white-neutral color for terminal identification
  • 3 phase star connection

Includes

(4) 6-32 Mounting Screws

Specifications

Amperage Rating:20 A
Color:Yellow
Country of Origin:MX
Dimensions:4.63 in H x 3.13 in W
Enclosure:IP66
Grade:Industrial
Material:Nylon
Number of Poles:4
Number of Wires:4
Temperature Rating:-40 to 60 deg C
Terminal Type:Back Wire
Voltage Rating:120/208 VAC
