67W82 LEV

Name: 67W82 LEV
Brand: Leviton Manufacturing
SKU: 67W82 LEV
Price: 283.29 USD
Availability: OutOfStock

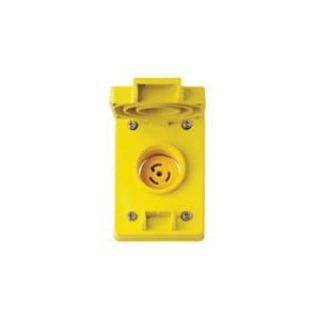

Actual Product May Vary From Image

Product Details

Manufacturer:

Leviton Manufacturing

Manufacturer part number:

67W82

CBT Inventory

Vendor Inventory

Availability:

Ships in 5-7 days.

Estimated dates are contingent upon manufacturer stock.

$283.29 / EA

Description

Brand Name

Leviton®

Type

3-Phase Y Grounding Single

Description

Leviton®, 67W82, Locking Receptacle, 3-Phase Y Grounding Single, 277/480 VAC, 20 A, 5 hp, 4 Pole, 5 Wires, NEMA L22-20R NEMA Rating, Industrial Grade, -40 to 60 deg C, Back Wire Terminal, Nylon, Yellow, 4.63 in H x 3.13 in W Dimensions

Application

Industrial Applications

Standards

Features

Withstands 2000 VAC per UL498 dielectric voltage
Full-rated current limiting
Maximum 30 deg C temperature rise after 250 cycles OL at 200% rated current
V2 per UL94 flammability rated
14 to 8 AWG solid or stranded wire terminal accommodation
Ratings and NEMA ID permanently marked on device for identification
Nylon face material, 0.04 in thick nickel plated brass line contacts, 10-32 nickel plated brass terminal screws, 8-32 nickel plated brass grounding screws and nickel plated brass strap
0.05 in thick nickel plated brass yoke
3 phase star connection, flush mount
Box mounting
14 to 8 AWG terminal accommodation
Flush mount

Specifications

Amperage Rating:	20 A
Color:	Yellow
Country of Origin:	MX
Dimensions:	4.63 in H x 3.13 in W
Grade:	Industrial
Horsepower:	5 hp
Material:	Nylon
NEMA Rating:	NEMA L22-20R
Number of Poles:	4
Number of Wires:	5
Temperature Rating:	-40 to 60 deg C
Terminal Type:	Back Wire
Voltage Rating:	277/480 VAC
