Description

Type

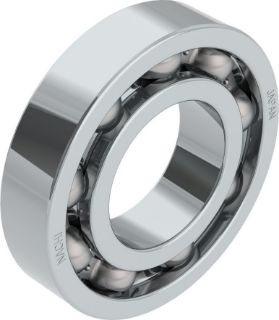

Deep Groove Ball Bearing

Description

Single Row Deep Groove Ball Bearings are the most common bearing type in the world due to their versatility and performance. These bearings are available in a variety of seal, shield and snap-ring arrangements. Bearings with seals or shields are standardized and already contain the proper amount of grease. Open bearings will require lubrication. These bearings can sustain radial and/or axial loads and because of their simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation. - Excellent High Speed Capability - Good Radial Load Capacity - Good Axial Load Capacity in both directions - Low Torque Requirements during startup and operation - Low Noise - Little/No Maintenance Required

Specifications

Bore (mm):85
Boundary Dimensions (mm):(85x110x13)
Configuration:Open Bearing
Dynamic Load Capacity Cr (N):18700
Limiting Speed - Grease (rpm):5700
Limiting Speed - Oil (rpm):6700
Outside Diameter (mm):110
Static Load Capacity Cor (N):19000
Weight (lbs):0.583
Width (mm):13

Products Specifications

Bore Size
85 mm
Brand Name
Nachi
Outside Diameter
110 mm
Width
13 mm
