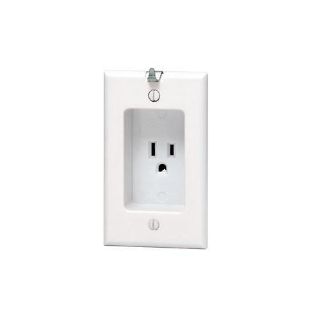

688-T LEV

Product Details

Manufacturer part number:
688-T
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 5-7 days.
Estimated dates are contingent upon manufacturer stock.

Description

Brand Name

Leviton®

Type

1-Gang Duplex Recessed Single Traditional

Alternate Supplier #

Grainger - 25LG77

Description

For an almost invisible installation behind wall mounted TVs, entertainment centers, monitors and more, connect with Leviton® recessed Devices. The recessed entertainment box (REB) centralizes AC power and low voltage connection points for audio, video, data and phones. For smaller applications, choose a 2-Gang recessed duplex receptacle (with openings for six installer-selected QuickPort® connectors) or a 1-Gang recessed duplex Receptacle. Flush-mounted on the wall, the Leviton® recessed boxes install invisibly behind wall units, wall mounted flat panel TVs and signature artwork. They are perfect for homes, apartments, co-ops, condominiums and offices.
Leviton® Straight Blade Receptacle, 1-Gang Duplex Recessed Single Traditional, 125 VAC, 15 A, 2 Poles, 3 Wires, NEMA 5-15R, Commercial/Residential Grade, -40 to 60 deg C, Thermoplastic, Light Almond

Standards

NOM 057 | UL 498/CO/ALR | UL 1561 | CSA File No. LR406 | UL94 V-2 Flammability Rating

Features

  • Terminal screws accept up to #12 AWG copper or copper clad wire
  • Quickwire push-in terminals accept 14 AWG solid copper wire only
  • Double wipe power contacts for maximum conductivity and plug retention
  • Heavy gauge, rust resistant steel mounting strap
  • Shallow design for maximum wiring room in box
  • Break-OFF plaster ears for best flush alignment
  • Captive mounting screws
  • Break-OFF tabs allow easy 2-circuit conversion

Specifications

Amperage Rating:15 A
Color:Light Almond
Country of Origin:CN
Grade:Commercial
Material:Thermoplastic
NEMA Rating:NEMA 5-15R
Number of Poles:2
Number of Wires:3
Temperature Rating:-40 to 60 deg C
Terminal Type:Side Wire
Voltage Rating:125 VAC
