689-T LEV

Product Details

Manufacturer part number:
689-T
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 5-7 days.
Estimated dates are contingent upon manufacturer stock.

Description

Brand Name

Leviton®

Type

1-Gang Duplex

Alternate Supplier #

Grainger - 25LG81

Description

Take advantage of soaring sales for flat screen TVs with Leviton® recessed Devices. They offer flawless, flush mounted installation that ins unobtrusive behind today ins TVs, monitors and entertainment centers. The versatile recessed two-gang duplex receptacle (Cat. No. 690)provides AC power and openings for six QuickPort® modules you can tailor to support your customer ins voice, data, video and audio needs. The recessed one-gang receptacle (Cat. No. 689) supplies AC power to two components, such as a flat panel TV and video receiver. Available in white, ivory, light almond and black, Leviton® recessed devices are the sleekest solution for home and office installations.

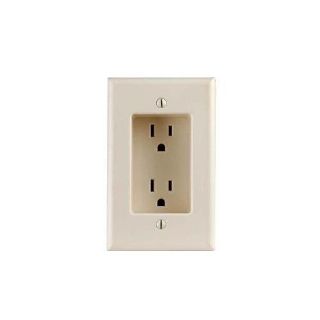

Leviton® Straight Blade Receptacle, 1-Gang Duplex, 125 VAC, 15 A, 2 Poles, 3 Wires, NEMA 5-15R, Commercial Grade, Screw Terminal, Thermoplastic, Light Almond

Standards

cULus Listed

Features

  • Terminal screws accept up to #12 AWG copper or copper-clad wire
  • Quickwire push-in terminals accept 14 AWG solid copper wire
  • Double wipe power contacts for maximum conductivity and plug retention
  • Heavy gauge, rust resistant steel mounting strap
  • Shallow design for maximum wiring room
  • Break-off plaster ears for best flush alignment
  • 1-gang recessed
  • Break-off tabs allow easy two-circuit conversion
  • Steel strap
  • With screws mounted to housing
  • Captive mounting screws

Includes

Mounting Screw

Specifications

Amperage Rating:15 A
Color:Light Almond
Country of Origin:CN
Grade:Commercial
Material:Thermoplastic
NEMA Rating:NEMA 5-15R
Number of Poles:2
Number of Wires:3
Terminal Type:Screw
Voltage Rating:125 VAC
