6900-22 GRL

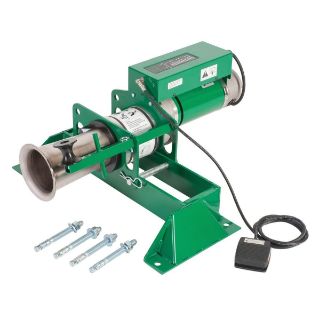

Greenlee® Ultra Tugger® 6900-22 Heavy Duty Cable Puller With Floor Mount, 6500 to 10000 lb Pulling, 7/8 in Dia Cable, 16 fpm at No Load Pulling
Manufacturer: Greenlee
Manufacturer part number: 6900-22
Availability: Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
Price on Request

Product Details

Brand Name

Greenlee®

Type

Heavy Duty

Description

Greenlee® Ultra Tugger® Cable Puller, Heavy Duty, Series: 6900, 6500 to 10000 lb Pulling, 16 fpm at No Load Pulling Speed, 7/8 in Diameter Cable, 32000 lb Load, 220 V, 20 A, 1-1/2 hp Power, 11.5 in L x 26 in W x 10 in H Dimensions

Application

For cable pulls requiring high as well as low pulling loads

Standards

ARRA Compliant | UL/cUL Listed

Features

  • Two speed motor that delivers the fastest pulling time for all pulling needs over the widest 10000 lb range
  • Strong, rugged motor designed specifically for both big and small cable pulling applications upto 10000 lb
  • Easy control features for increased productivity
  • On-board force gauge provides visual communication of pulling force and speed changes
  • Quick speed change from high speed to low speed by simply double tapping foot pedal
  • Removable foot pedal for convenience
  • Double braided polyester composite rope
  • Pulling speed : 14 ft/min at 2000 lb, 12 ft/min at 4000 lb, 7 ft/min at 6000 lb and 6 ft/min at 8000 lb

Includes

UT10-22 The Ultra Tugger® 10 and 00865 Floor Mount

Specifications

Amperage Rating:20 A
Bare Tool/Kit:Bare Tool
Cable Diameter:7/8 in
Country of Origin:US
Dimensions:11.5 in L x 26 in W x 10 in H
Load Rating:32000 lb
Power Rating:1-1/2 hp
Pulling Capacity:6500 to 10000 lb
Pulling Speed:16 fpm at No Load
Series:6900
Voltage Rating:220 V
