6901-22 GRL

Name: 6901-22 GRL
Brand: Greenlee
SKU: 6901-22 GRL
Price: 20,241.51 USD
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Greenlee

Manufacturer part number:

6901-22

CBT Inventory

Vendor Inventory

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

$20,241.51 / EA

Description

Brand Name

Greenlee®

Type

Heavy Duty

Description

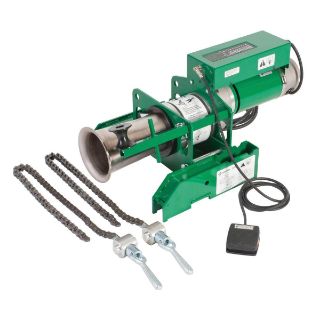

Greenlee® Ultra Tugger® Cable Puller, Heavy Duty, Bare Tool Bare Tool/Kit, Series: 6900, 6500 to 10000 lb Pulling, 16 fpm at No Load Pulling Speed, 7/8 in Diameter Cable, 32000 lb Load, 220 V, 20 A, 1-1/2 hp Power, 11-1/2 in L x 26 in W x 10 in H Dimensions

Application

For cable pulls requiring high as well as low pulling loads

Standards

ARRA Compliant | UL/cUL Listed

Features

2 speed motor that delivers the fastest pulling time for all pulling needs over the widest 10000 lb range
Strong, rugged motor designed specifically for both big and small cable pulling applications up to 10000 lb
Easy control features for increased productivity
On board force gauge provides visual communication of pulling force and speed changes
Quick speed change from high speed to low speed by simply double tapping foot pedal
Removable foot pedal for convenience
Double braided polyester composite rope
Pulling speed - 16 ft/min at no load, 14 ft/min at 2000 lb, 12 ft/min at 4000 lb, 7 ft/min at 6000 lb and 6 ft/min at 8000 lb

Includes

UT10-22 Ultra Tugger and 02846 Chain Mount

Specifications

Amperage Rating:	20 A
Bare Tool/Kit:	Bare Tool
Cable Diameter:	7/8 in
Country of Origin:	US
Dimensions:	11-1/2 in L x 26 in W x 10 in H
Load Rating:	32000 lb
Power Rating:	1-1/2 hp
Pulling Capacity:	6500 to 10000 lb
Pulling Speed:	16 fpm at No Load
Series:	6900
Voltage Rating:	220 V
