6906 GRL

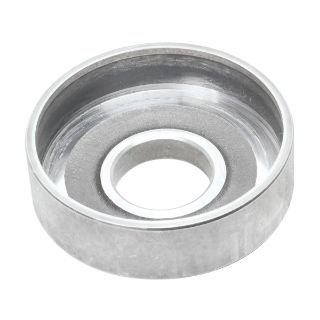

Picture of 6906 GRL
Actual Product May Vary From Image

Product Details

Manufacturer:
Greenlee
Manufacturer part number:
6906
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$22,815.36 / EA

Description

Brand Name

Greenlee®

Type

Double Braided Heavy Duty

Alternate Supplier #

Grainger - 15X798

Description

Greenlee® Ultra Tugger® Cable Puller Package, Double Braided Heavy Duty, Series: 6900, 6500 to 10000 lb Pulling, 5 Pulling Speeds, 16 fpm at No Load Pulling Speed, 7/8 in Diameter Cable, 0 to 6500 lb Load, 115 VAC, 20 A, 1-1/2 hp Power, Polyester Composite, 11-1/2 in L x 26 in W x 6-3/4 in H Dimensions

Standards

ARRA Compliant | UL Listed | cUL Listed

Features

  • 2-speed ultra Tugger® (UT10-2S) is a one-stop-shop - the only 2-speed puller on the market that can shift from high speed/low load pulling to low speed/high load pulling with a simple double tap motion on the foot pedal control switch
  • Use for cable pulls requiring high as well as low pulling loads
  • The no load high speed is 16 ft/min and is best suited for loads up to 4000 lb where the speed will be 12 ft/min
  • The no load low speed is 9 ft/m and can be used on loads up to 8000 lb where the speed will be 6 ft/m or a momentary peak capacity of 10000 lb
  • 2-speed motor that delivers the fastest pulling time for all pulling needs over the widest 10000 lb range
  • Strong, rugged motor designed specifically for both big and small cable pulling applications up to 10000 lb
  • Easy control features for increased productivity, on-board force gauge provides visual communication of pulling force and speed changes
  • Quick speed change from high speed to low speed by simply double tapping foot pedal
  • Removable foot pedal for convenience
  • Sets up in less than 2 min and can be used in every pulling situation
  • This combination of speed and versatility can increase your productivity, equaling more pulls in a day and delivering greater benefit to your bottom line
  • Double braided polyester composite rope
  • 14 ft/min at 2000 lb, 12 ft/min at 4000 lb, 7 ft/min at 6000 lb and 6 ft/min at 8000 lb pulling speed
  • On-board force gauge provides visual communication of pulling force and speed changes easy control features for increased productivity
  • 6500 to 8000 lb (28.9 to 35.6 KN) 15 min on/15 min OFF, 8000 to 10000 lb (35.6 to 44.5 KN) momentary

Includes

00563 2 in UT8 adapter Weldment, 00565 3 in UT8 adapter Weldment, 00567 4 in UT8 adapter Weldment and 00610 5 in UT8 adapter Weldment

Specifications

Amperage Rating:20 A
Bare Tool/Kit:Bare Tool
Cable Diameter:7/8 in
Country of Origin:US
Dimensions:11-1/2 in L x 26 in W x 6-3/4 in H
Load Rating:0 to 6500 lb
Material:Polyester Composite
Number of Pulling Speeds:5
Power Rating:1-1/2 hp
Pulling Capacity:6500 to 10000 lb
Pulling Speed:16 fpm at No Load
Series:6900
Voltage Rating:115 VAC
