Home / 69586-U89 LEV

69586-U89 LEV

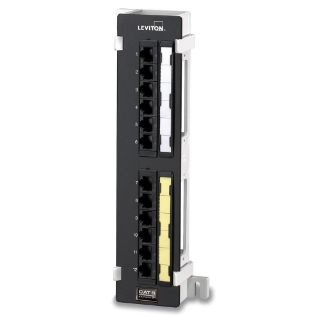

Picture of 69586-U89 LEV
Actual Product May Vary From Image

Product Details

Manufacturer:
Leviton Manufacturing
Manufacturer part number:
69586-U89
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 5-7 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$418.62 / EA

Description

Brand Name

Leviton®

Type

110-Style Universal

Description

Leviton's eXtreme 6 patch panels are designed for use on 19 in standard racks and cabinets. The patch panels include Leviton's patent pending Retention Force Technology which promotes consistent performance over the life of the system. Installer friendly design allows for quick installation due to standard 110 terminations on the rear of the panel which follows the normal installation color sequence (Blue, orange, Green, brown) from left to right. Leviton's eXtreme 6 system is designed for use in high megabit applications such as Gigabit Ethernet.
Leviton® Patch Block, Flat, Series: 69586, 12 Ports, Category: Cat 6, 26 to 22 AWG Terminal, 110-IDC Terminal, Wiring Code: T568A/T568B, Rack Mounting, Plastic/14 ga Steel, Black

Application

For 19 in rack and cabinet electronic equipment

Standards

ANSI/TIA-568-C.2/TIA-1096-A | ISO/IEC 11801 | cULus Listed

Features

  • Patented retention force technology protects tines from damage and increases system longevity
  • Craft friendly installation
  • Universal T568A and T568B wiring cards for 110 style IDC terminations
  • Color coded front labeling for easy port identification
  • Terminates 26 to 22 ga solid conductor
  • Centralized labeling promotes greater visibility of labels when patch cords are routed into horizontal cable management above and below the patch panel
  • Capable of multiple re-termination
  • Mounts on 19 in equipment racks
  • Panel offered in 12, 24, 48, 96-port configurations and 12-ports U89 block for wall mount applications
  • Connector modules are in groups of six
  • Use star washers for grounding in rack mount installations

Includes

Rear Cable Management Bar

Specifications

Category Type:CAT 6
Color:Black
Country of Origin:US
Material:Plastic/14 ga Steel
Mounting Type:Rack
Number of Ports:12
Series:69586
Terminal Size:26 to 22 AWG
Terminal Type:110-IDC
Wiring Code:T568A/T568B
