69W09 LEV

Name: 69W09 LEV
Brand: Leviton Manufacturing
SKU: 69W09 LEV
Price: 291.64 USD
Availability: OutOfStock

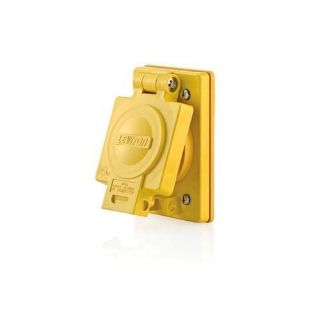

Actual Product May Vary From Image

Product Details

Manufacturer:

Leviton Manufacturing

Manufacturer part number:

69W09

CBT Inventory

Vendor Inventory

Availability:

Ships in 5-7 days.

Estimated dates are contingent upon manufacturer stock.

$291.64 / EA

Description

Brand Name

Leviton®

Type

3-Phase Non-Grounding

Description

Leviton® Locking Receptacle, 3-Phase Non-Grounding, 120/208 VAC, 30 A, 4 Pole, 4 Wires, Industrial Grade, -40 to 60 deg C, Back Wire Terminal, Nylon, Yellow, 4.63 in H x 3.13 in W Dimensions

Application

Commercial Applications

Standards

Features

Box mounting
Non-NEMA rated
18 to 10 AWG terminal accommodation
Withstands 2000 VAC per UL498 dielectric voltage
Full-rated current limiting
Maximum 30 deg C temperature rise after 250 cycles OL at 200% rated current
V2 per UL94 flammability rated
18 to 8 AWG solid or stranded wire terminal accommodation
Ratings and NEMA ID permanently marked on device for identification
Nylon face material, 0.04 in thick nickel plated brass line contacts, 10-32 nickel plated brass terminal screws, 8-32 nickel plated brass grounding screws and nickel plated brass strap
0.05 in thick nickel plated brass yoke
3 phase star connection, flush mount
Brass-hot, green-ground, white-neutral color for terminal identification

Specifications

Amperage Rating:	30 A
Color:	Yellow
Country of Origin:	MX
Dimensions:	4.63 in H x 3.13 in W
Enclosure:	IP66
Grade:	Industrial
Material:	Nylon
Number of Poles:	4
Number of Wires:	4
Temperature Rating:	-40 to 60 deg C
Terminal Type:	Back Wire
Voltage Rating:	120/208 VAC
