69W47H HWD

Name: 69W47H HWD
Brand: Hubbell Wiring Device-Kellems
SKU: 69W47H HWD
Availability: OutOfStock

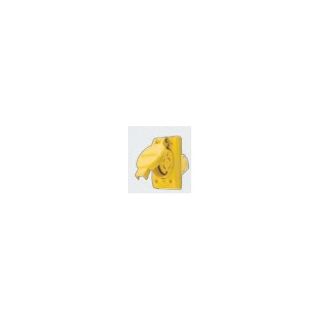

Actual Product May Vary From Image

Product Details

Manufacturer:

Hubbell Wiring Device-Kellems

Manufacturer part number:

69W47H

CBT Inventory

Vendor Inventory

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Wiring Device-Kellems

Type

Single Watertight

Alternate Supplier #

Grainger - 5RWC8

Description

Wiring Device-Kellems Twist-Lock® Locking Receptacle, Single Watertight, 125 VAC, 30 A, 2 Pole, 3 Wires, NEMA L5-30, NEMA 4/4X/6/6P/IP65/IP66/IP67 Enclosure, 0.475 to 0.72 in Diameter Cord, -40 to 60 deg C, Screw Terminal, PBT, Yellow, 4.2 in H x 3.14 in W x 1.32 in D Dimensions

Application

Food and Beverage Processing, Outdoor Entertainment, Construction, Agriculture, Water Treatment, Municipal, Factory and Temporary Power

Standards

UL 498 | CSA C22.2 No. 42 | NEMA WD-1 | WD-6

Features

Impact resistant PBT housing with stainless steel hardware
Weather resistant elastomeric seal
Large wiring chambers for easy termination
Mounts to FS and FD boxes
30 deg C max per UL498 at rated current temperature rise
Rated for current interruption per UL498
Ground-green, neutral-silver/white and Hot(s)-brass terminal identification
All exposed materials are UV stabilized
Use solid or stranded building wire or flexible cord
14 to 10 AWG wire

Specifications

Amperage Rating:	30 A
Color:	Yellow
Cord Diameter:	0.475 to 0.72 in
Country of Origin:	US
Dimensions:	4.2 in H x 3.14 in W x 1.32 in D
Enclosure:	NEMA 4/4X/6/6P/IP65/IP66/IP67
Material:	PBT
NEMA Rating:	NEMA L5-30
Number of Poles:	2
Number of Wires:	3
Temperature Rating:	-40 to 60 deg C
Terminal Type:	Screw
Voltage Rating:	125 VAC
