69W76H HWD

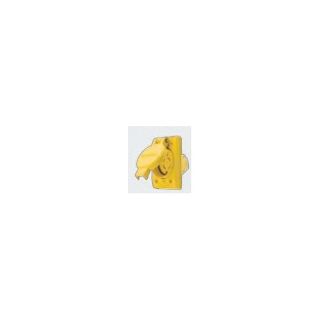

Picture of 69W76H HWD
Actual Product May Vary From Image

Product Details

Manufacturer:
Hubbell Wiring Device-Kellems
Manufacturer part number:
69W76H
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
Price on Request

Description

Brand Name

Wiring Device-Kellems

Type

3-Phase Grounding Standard Single Watertight

Alternate Supplier #

Grainger - 5RWD6

Description

Wiring Device-Kellems Twist-Lock® Locking Receptacle, 3-Phase Grounding Standard Single Watertight, Series: Weather Protective, 480 VAC, 30 A, 3 Pole, 4 Wires, NEMA L186-30R/WD1/WD5/WD6, NEMA 4/4X/6/6P/IP65/IP66/IP67 Enclosure, 0.64 to 0.93 in Cord Dia, -40 to 60 deg C, Screw Terminal, Composite, Yellow, 4.2 in H x 3.14 in W x 1.32 in D

Application

Food and Beverage Processing, Outdoor Entertainment, Construction, Agriculture, Water Treatment, Municipal, Factory, Elastomeric and Temporary Power Applications

Standards

UL 498 | CSA C22.2 No. 42

Features

  • Impact resistant PBT housing with stainless steel hardware
  • Weather resistant elastomeric seal
  • Large wiring chambers for easy termination
  • Mounts to FS and FD boxes
  • 30 deg C maximum per UL 498 at rated current temperature rise
  • Rated for current interruption per UL 498
  • Ground green, neutral silver/white and Hot(s)-brass terminal identification
  • All exposed materials are UV stabilized
  • Use solid or stranded building wire or flexible cord
  • Screw mount
  • 10 AWG wire

Specifications

Amperage Rating:30 A
Color:Yellow
Cord Diameter:0.64 to 0.93 in
Country of Origin:US
Dimensions:4.2 in H x 3.14 in W x 1.32 in D
Enclosure:NEMA 4/4X/6/6P/IP65/IP66/IP67
Material:Composite
NEMA Rating:NEMA L186-30R/WD1/WD5/WD6
Number of Poles:3
Number of Wires:4
Series:Weather Protective
Temperature Rating:-40 to 60 deg C
Terminal Type:Screw
Voltage Rating:480 VAC
