69W77 WOO

Name: 69W77 WOO
Brand: Molex/Woodhead
SKU: 69W77 WOO
Price: 161.26 USD
Availability: OutOfStock

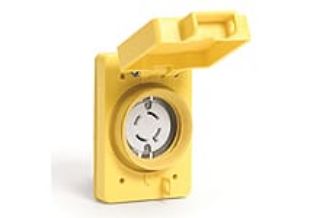

Actual Product May Vary From Image

Product Details

Manufacturer:

Molex/Woodhead

Manufacturer part number:

69W77

CBT Inventory

Vendor Inventory

Availability:

Expected Leadtime 12 days

Estimated dates are contingent upon manufacturer stock.

$161.26 / EA

Description

Brand Name

Woodhead®

Type

3-Phase Female

Description

Woodhead® Watertite® wet location wiring device are rated for high pressure hose down application up to 1000 psi, the benchmark for the industry. The only device made of NEoTEX® paracril OZO rubber, yield ultimate performance within a wide temperature range, around many oil, chemical and abrasive condition. Additional feature include - unique multiple ring seal that lock snugly protecting against moisture and contaminant, sturdy compression type cord grip that provide high pull out strength and a protective closure cap that seal the connector when it is not in use. Woodhead® Watertite® product are time tested device that professional demand.

Woodhead® Watertite® Receptacle, 3-Phase Female, Series: 130147, 600 VAC, 30 A, 3 Pole, 4 Wires, 1/3/4/4X/5/6/6P/12/L17-30 NEMA Rating, IP55/IP56/IP57/IP65/IP66/IP67 Enclosure, 7/16 to 1-7/64 in Diameter Cord, -40 to 75 deg C, Screw Terminal, NEoTEX® Paracril OZO Rubber, Yellow

Application

Breweries, Dairies, Food, Beverage, Wastewater, Water Treatment and Wet Location

Standards

CSA File No. LR6837 | NSF/ANSI/3-A 14159-1 | UL File No. E68122

Features

Color coded 1/4 in terminal screw preset in open position, ready to wire
Wire screw terminal are tri-drive to be used with straight blade, Phillips® and square drive screw driver
Floating blade construction provides self-alignment, and a better mechanical and electrical connection minimizing wear and heat generation
Transparent wiring guide to verify all wire strand are in place before securing wire
Captive, tri-drive head, stainless steel, speed screw provides easy assembly and long life
3-piece strain relief seal cord without damaging the cord

Specifications

Amperage Rating:	30 A
Color:	Yellow
Cord Diameter:	7/16 to 1-7/64 in
Country of Origin:	MX
Enclosure:	IP55/IP56/IP57/IP65/IP66/IP67
Material:	NEoTEX® Paracril OZO Rubber
NEMA Rating:	1/3/4/4X/5/6/6P/12/L17-30
Number of Poles:	3
Number of Wires:	4
Series:	130147
Temperature Rating:	-40 to 75 deg C
Terminal Type:	Screw
Voltage Rating:	600 VAC
