Home / 69W81 LEV

69W81 LEV

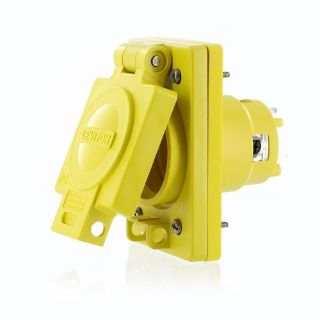

Picture of 69W81 LEV
Actual Product May Vary From Image

Product Details

Manufacturer:
Leviton Manufacturing
Manufacturer part number:
69W81
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 5-7 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$337.69 / EA

Description

Brand Name

Leviton®

Type

3-Phase Single Grounding

Description

Leviton® Wetguard® line of industrial watertight wiring devices are the most versatile, well engineered watertight devices ON the market. They meet IP67 and NEMA ratings for water ingress protection and offer many significant advantages over competitive brands.
Leviton®, 69W81, Locking Receptacle, 3-Phase Single Grounding, 120/208 VAC, 30 A, 3 hp, 4 Pole, 5 Wires, NEMA L21-30R NEMA Rating, Industrial Grade, IP67 Enclosure, -40 to 60 deg C, Back Wire Terminal, Nylon, Yellow, 4.63 in H x 3.13 in W Dimensions

Application

Industrial Applications

Standards

NEMA WD1/WD6 | ANSI C73 | NOM 057 | CSA C22.2 No. 42/LR406 | Federal Specification WC596/E13399 | UL 498 File No. E13399 | UL94 V-2 Flammability Rating

Features

  • Box mounting
  • 14 to 8 AWG solid or stranded wire terminal accommodation
  • Flush mount
  • Withstands 2000 VAC per UL498 dielectric voltage
  • Full-rated current limiting
  • Maximum 30 deg C temperature rise after 250 cycles OL at 200% rated current
  • V2 per UL94 flammability rated
  • Ratings and NEMA ID permanently marked on device for identification
  • Nylon face material, 0.04 in thick nickel plated brass line contacts, 10-32 nickel plated brass terminal screws, 8-32 nickel plated brass grounding screws and nickel plated brass strap
  • 0.05 in thick nickel plated brass yoke
  • 3 phase star connection, flush mount
  • Brass-hot, green-ground, white-neutral color for terminal identification

Specifications

Amperage Rating:30 A
Color:Yellow
Country of Origin:MX
Dimensions:4.63 in H x 3.13 in W
Enclosure:IP67
Grade:Industrial
Horsepower:3 hp
Material:Nylon
NEMA Rating:NEMA L21-30R
Number of Poles:4
Number of Wires:5
Temperature Rating:-40 to 60 deg C
Terminal Type:Back Wire
Voltage Rating:120/208 VAC
