69W81 WOO

Name: 69W81 WOO
Brand: Molex/Woodhead
SKU: 69W81 WOO
Price: 183.60 USD
Availability: OutOfStock

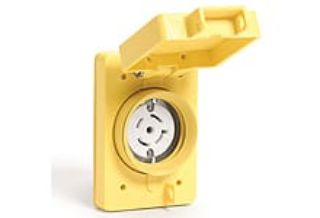

Actual Product May Vary From Image

Product Details

Manufacturer:

Molex/Woodhead

Manufacturer part number:

69W81

CBT Inventory

Vendor Inventory

Availability:

Expected Leadtime 12 days

Estimated dates are contingent upon manufacturer stock.

$183.60 / EA

Description

Brand Name

Woodhead®

Type

3-Phase Female Single

Description

Woodhead® Watertite® Receptacle, 3-Phase Female Single, Series: 130147, 208 VAC, 30 A, 4 Pole, 5 Wires, L21-30 NEMA Rating, IP67 Enclosure, -40 to 75 deg C, Screw Terminal, Yellow

Standards

UL File No. E68122

Features

Multiple seal plug or connector interface keep out contaminant-resistant vapor and water from high pressure washdown up to 1000 psi
Color coded 1/4 in terminal screw preset in open position, ready to wire
Wire screw terminal are tri-drive to be used with straight blade, Phillips® and square drive screw driver
Floating blade construction provides self-alignment, and a better mechanical and electrical connection minimizing wear and heat generation
Transparent wiring guide to verify all wire strand are in place before securing wire
Captive, tri-drive head, stainless steel, speed screw provides easy assembly and long life
Three piece strain relief seal cable without damaging the cable

Specifications

Amperage Rating:	30 A
Color:	Yellow
Country of Origin:	MX
Enclosure:	IP67
NEMA Rating:	L21-30
Number of Poles:	4
Number of Wires:	5
Series:	130147
Temperature Rating:	-40 to 75 deg C
Terminal Type:	Screw
Voltage Rating:	208 VAC
