6A10G-RV6 LEV

Name: 6A10G-RV6 LEV
Brand: Leviton Manufacturing
SKU: 6A10G-RV6 LEV
Availability: OutOfStock

Actual Product May Vary From Image

Manufacturer:

Manufacturer part number:

6A10G-RV6

CBT Inventory

Vendor Inventory

Availability:

Ships in 5-7 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Leviton®

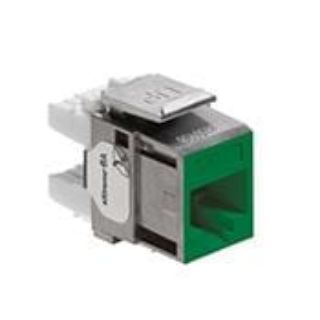

Leviton® eXtreme® QuickPort® Component Rated Connector, Series: 6A10G, Cat 6a Module, Plastic, Green, 0.64 in W x 1.39 in D x 0.885 in H

Commercial Applications

ANSI/TIA-1096-A | cULus Listed | ISO 11801 | IEEE 802.3

Independently tested and verified by Intertek (ETL) for Cat 6A component performance
Alien crosstalk suppressed by patented cone of silence, metalized body and new printed circuit board
Patented triple-stage compensation design with integrated flexible circuit enhances link and channel performance
Conductor retention feature holds individual conductors in place during termination
Pair separation Tower facilitates separation of Cat 6A conductors
Patented retention force technology protects against tine damage from 4 or 6 pin plugs
Patented dual-layer wiring label simplifies punchdown and reduces rework
Snap-in installation into any Leviton QuickPort® footprint patch panels, wallplates and housings
Cable entry can be 90 or 180 deg to fit any application
High-impact, fire-retardant plastic rated UL 94V-0 with copper and nickel plating connector body
High-quality, copper-based alloy, plated with 50 micro-inches of gold for lowest contact resistance and maximum life spring wire contacts
Alien crosstalk attenuation cover (cone of silence), patented retention force technology (RFT)
0.20 at 100MHz, 0.32 at 250 MHz dB insertion loss
Surface/flush mounting
