Home / 6AS10-15E LEV

6AS10-15E LEV

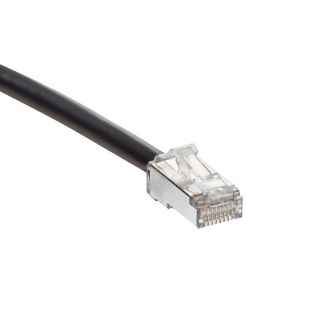

Picture of 6AS10-15E LEV
Actual Product May Vary From Image

Product Details

Manufacturer:
Leviton Manufacturing
Manufacturer part number:
6AS10-15E
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 5-7 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$88.71 / EA

Description

Brand Name

Leviton®

Type

CMR Rated

Description

Cat 6A patch cords shall provide electrical ANSI/ TIA-568-C.2 Cat 6A performance for all internal and alien crosstalk parameters from 1 to 500 MHz. The patch cord shall be a 26 AWG FTP construction with stranded conductors to provide greater flex-life. The patch cord will incorporate a SlimLine boot combination to provide strain relief and ease of use in higher-density applications. The patch cords shall be available in standard lengths of 3, 5, 7, 10, 15, and 20 ft. The patch cord shall be available in seven standard colors. Patch cord plug shall have industry-standard, ANSI/TIA1096-A compliant 50 micro inch of gold plating.
eXtreme® Atlas-X1™ Patch Cord, CMR Rated Type, Series: SlimLine, Category: Cat 6A, 26 AWG Conductor, FTP Stranded Copper Conductor, 15 ft Cord Length, PVC Jacket, Black Jacket

Application

Data Center, Telecommunication Room, Healthcare, Manufacturing and Casino

Standards

ANSI/TIA-568-C.2/TIA 568-B.2-10 | ISO/IEC 11801 Cat 6A | ISO 11801 Class EA | cULus Listed | IEEE 802.3at/IEEE Draft 802.3bt/D1.2 | UL 444 | CMR Rated

Features

  • Independently tested and verified by Intertek (ETL) for Cat 6A component performance
  • Cable construction provides excellent alien crosstalk suppression and EMI/RFI protection
  • SlimLine boot features a narrow profile for less congestion in higher density applications
  • Snagless design prevents tab breakage
  • Strain relief boot ensures long term network performance
  • Outside diameter of 0.24 in easier to manage
  • 26 AWG stranded conductors for maximum flexibility
  • Same cord for UTP or shielded installations

Specifications

Category Type:Cat 6A
Color:Black
Conductor Size:26 AWG
Conductor Type:FTP Stranded Copper
Connector Type:Plug
Cord Length:15 ft
Country of Origin:US
Jacket Color:Black
Jacket Material:PVC
Series:6AS10
