6CH2203 MSG

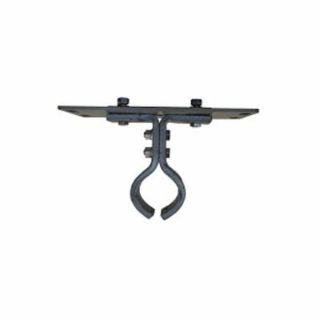

6" x 1-1/2" Style 220 Hanger, Only
Manufacturer: Martin Sprocket & Gear
Manufacturer part number: 6CH2203
Availability: Ships in 2-4 days.
CBT - Cincinnati
0
CBT - Springboro
0
CBT - Sidney
0
Estimated dates are contingent upon manufacturer stock.
$58.49

Product Details

Description

No. 220 hangers are designed for mount on top of the trough flanges and may be used where dust-tight or weather proof operation is not required. This type hanger allows for minimum obstruction of material flow in high capacity conveyors. Available with friction type bearing.

Features

Multiple styles available in stock. Made to CEMA standards. Laser cut flat pieces to ensure consistent finish and high quality

Specifications

Drop to Bearing Centerline:4.5
Hanger Top Frame Width:9.75
Material:Steel
Mounting Bolt Size:.375X1
Number of Mounting Bolts:4
Storage Dimension Height:1.875
Storage Dimension Length:9.875
Storage Dimension Width:5.5
UOM:Inch
