6CH603 MSG

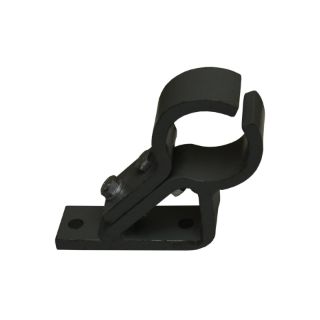

6" x 1-1/2" Style 60 Hanger, Only
Manufacturer: Martin Sprocket & Gear
Manufacturer part number: 6CH603
Availability: Ships in 2-4 days.
CBT - Cincinnati
0
CBT - Springboro
0
CBT - Sidney
0
Estimated dates are contingent upon manufacturer stock.
$313.27

Product Details

Description

No. 60 hangers are furnished with a heavy duty, permanently lubricated and sealed, self-aligning ball bearing which permits temperatures up to 245º F. and will allow for up to 4 º shaft misalignments. This hanger is mounted on top of the trough flanges. Grease fitting can be furnished if specified.

Features

Multiple styles available in stock. Made to CEMA standards. Laser cut flat pieces to ensure consistent finish and high quality

Specifications

Drop to Bearing Centerline:4.5
Hanger Top Frame Width:9.75
Material:Steel
Mounting Bolt Size:.5X2
Number of Mounting Bolts:2
Storage Dimension Height:1.875
Storage Dimension Length:9.875
Storage Dimension Width:5.5
UOM:Inch
