6F EB FR FB KOP

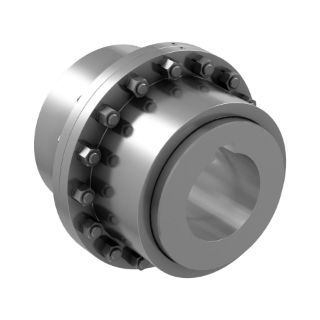

Picture of 6F EB FR FB KOP
Actual Product May Vary From Image

Product Details

Manufacturer:
Regal Rexnord
Manufacturer part number:
2280691
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 3-5 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$22,978.99 / EA

Description

Brand Name

Kop-Flex®

Type

Type EB Finished Bore

Description

The all metal end ring, used exclusively in FAST'S® couplings, eliminates the need for any type of perishable lube seal. The end ring not only provides an escape route for lubricant, but it also pilots the sleeve during start-up and shut-down operations. It further eliminates partial tooth disengagement with resulting tooth overloads by providing sleeve teeth. The sleeve teeth are flush against the inside wall of the end ring.
Kop-Flex® FAST'S® Gear Coupling, Type EB Finished Bore, 6-1/2 in Flex/8-3/4 in Rigid Bore, 18 in OD, 15-1/16 in Overall Length, Flex/Rigid Hub, 11-1/2 in Dia Rigid Hub, 7.406 in Flex/7.469 in Rigid Length Through Bore, 759000 in-lb Continuous/1518000 in-lb Peak Torque, 3600 rpm Maximum, 480 hp Power, 7/8 in Dia x 3-1/4 in L Bolt, 14 Bolts, -40 to 190 deg F

Application

Aggregate, Cement, Coal Power Generation, Cranes, Hoists, HVAC, Marine, Metals, Minerals, Mining, Pulp, Paper, Unit Handling, Water and Wastewater Industries

Features

  • Size 6 coupling
  • All metal end ring seal design for maximum service life
  • Provides 300% greater lubricant capacity than O-ring style couplings
  • Greater lubricant capacity allows longer periods between scheduled lubrications and longer service life
  • Straight tooth design provides improved load distribution, lower stresses and longer life for the gear teeth
  • The industry standard for over 75 years

Specifications

Bolt Size:7/8 in Dia x 3-1/4 in L
Bore Diameter:6-1/2 in Flex/8-3/4 in Rigid
Hub Size:11-1/2 in Dia Rigid
Hub Type:Flex/Rigid
Length Through Bore:7.406 in Flex/7.469 in Rigid
Maximum Speed:3600 rpm
Number of Bolts:14
Outside Diameter:18 in
Overall Length:15-1/16 in
Power Rating:480 hp
Temperature Rating:-40 to 190 deg F
Torque Rating:759000 in-lb Continuous/1518000 in-lb Peak
