6F101-C02 LEV

Name: 6F101-C02 LEV
Brand: Leviton Manufacturing
SKU: 6F101-C02 LEV
Availability: OutOfStock

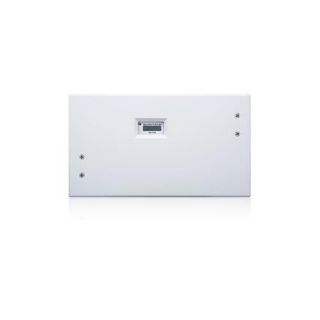

Actual Product May Vary From Image

Product Details

Manufacturer:

Leviton Manufacturing

Manufacturer part number:

6F101-C02

CBT Inventory

Vendor Inventory

Availability:

Ships in 5-7 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Leviton®

Type

1-Phase 2-Wire 1-Element Flush Mount

Description

The Leviton® Mini Meter™ line of revenue grade meters meets all measurement and verification based opportunities - including load management and LEED rating achievement. Designed to provide a simple and effective process for accurately capturing measurements of power consumption, Mini Meter™s are easy to specify and install for new construction and retrofits.

Leviton® VerifEye™ Mini Meter® Mini Meter Kit, 1-Phase 2-Wire 1-Element Flush Mount, 120 VAC, 200 A, LCD/Mechanical Counter Display, Isolated Pulse Output Communication, -30 to 60 deg C Operating, Plastic, 9.88 in W x 1.54 in D x 5.67 in H Dimensions

Application

Residential, Commercial, Institutional, Industrial, Load Profiling, Benchmarking, Usage Aggregation, Tenant Cost Allocation, Measurement, Verification, Energy Conservation, Cost Reduction, Green Building Initiatives, Government Mandates and Indoor Applications

Standards

Features

Measures kWh
Equipped standard with an isolated pulse output channel for automated meter reading
Utilizes revenue grade 0.3% accuracy class 0.1 A secondary solid core current transformers that conform to all applicable ANSI requirements or 1% accuracy split core current transformers
Up to three sets of current transformers per phase can be paralleled per meter without the need for a meter multiplier
48 in L maximum current transformer lead
1 kWh individual self-contained LCD counter

Specifications

Amperage Rating:	200 A
Communication:	Isolated Pulse Output
Country of Origin:	US
Dimensions:	9.88 in W x 1.54 in D x 5.67 in H
Display Type:	LCD/Mechanical Counter
Material:	Plastic
Operating Temperature:	-30 to 60 deg C
Voltage Rating:	120 VAC
