6F201-C02 LEV

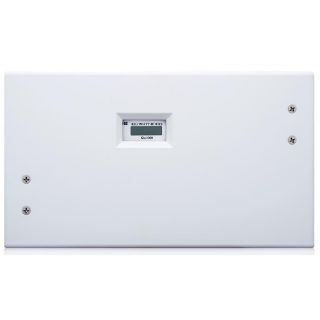

Picture of 6F201-C02 LEV
Actual Product May Vary From Image

Product Details

Manufacturer:
Leviton Manufacturing
Manufacturer part number:
6F201-C02
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 5-7 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$631.74 / EA

Description

Brand Name

Leviton®

Type

1-Phase 2-Wire 2-Element Flush Mount

Description

The Leviton® Mini Meter™ line of revenue grade meters meets all measurement and verification based opportunities - including load management and LEED rating achievement. Designed to provide a simple and effective process for accurately capturing measurements of power consumption, Mini Meter™s are easy to specify and install for new construction and retrofits.
Leviton® VerifEye™ Mini Meter® Mini Meter Kit, 1-Phase 2-Wire 2-Element Flush Mount, 120/240 VAC, 200 A, LCD/Mechanical Counter Display, Isolated Pulse Output Communication, -30 to 60 deg C Operating, Plastic, 9.88 in W x 1.54 in D x 5.67 in H Dimensions

Application

Residential, Commercial, Institutional, Industrial, Indoor, Load Profiling and Benchmarking, Usage Aggregation, Tenant Cost Allocation, Measurement and Verification, Energy Conservation and Cost Reduction, Green Building Initiatives and Government Mandates Applications

Standards

ANSI C12.1 | ASHRAE 90.1 | cUL Listed | NEMA 4X Rated | Title 24 Compliant | UL Listed

Features

  • Measures kWh meter
  • Equipped standard with an isolated pulse output channel for automated meter reading
  • Utilizes revenue grade 0.3% accuracy class 0.1 A secondary solid core current transformers (CTs) that conform to all applicable ANSI requirements or 1% accuracy split-core CTs
  • Up to three sets of CTs per phase can be paralleled per meter without the need for a meter multiplier
  • 48 in maximum CT lead length
  • 1 kWh individual self-contained LCD counter

Specifications

Amperage Rating:200 A
Communication:Isolated Pulse Output
Country of Origin:US
Dimensions:9.88 in W x 1.54 in D x 5.67 in H
Display Type:LCD/Mechanical Counter
Material:Plastic
Operating Temperature:-30 to 60 deg C
Voltage Rating:120/240 VAC
