6L11/8 BOS

Name: 6L11/8 BOS
Brand: Boston Gear
SKU: 6L11/8 BOS
Price: 270.10 USD
Availability: OutOfStock

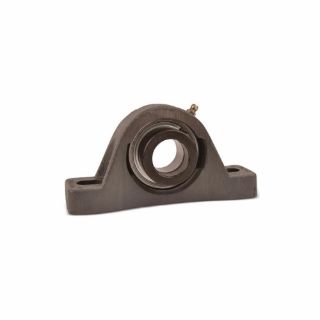

Actual Product May Vary From Image

Product Details

Manufacturer:

Boston Gear

Manufacturer part number:

6L 1-1/8

CBT Inventory

Vendor Inventory

Availability:

Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

$270.10 / EA

Description

Brand Name

Boston Gear®

Type

Low Backing Standard-Duty

Description

Boston Gear® offers a comprehensive selection of pillow blocks that include spherical bearings with extended inner races with setscrews or eccentric locking collars in stamped steel, ductile iron, cast iron or stainless housings. Ranging from light duty, plain bearing blocks to precision units, they all feature Boston Gear® tradition of design excellence and precision manufacturing.

Boston Gear® Pillow Block Ball Bearing Unit, Low Backing Standard-Duty, Series: L Series, 1-1/8 in Bore, 4-5/16 to 4-15/16 in Bolt Center-to-Center Length, 1-9/16 in Base to Bore Centerline, 6-1/4 in Overall Length, 1-59/64 in Overall Width, 3-1/8 in Overall Height, Two-Bolt Base Mounting, Round Bore, 1-3/4 in Base Width, Eccentric Collar Locking Device, Synthetic Lip Seal, Non-Expansion (Fixed) Expansion, 655 lb Load, -30 to 300 deg F, 4500 rpm Maximum, Cast Iron, Uncoated

Application

Food Processing, Material Handling, Packaging Machinery, Mining, Energy, Automotive, Primary Metals, Turf, Garden and Many Others

Standards

PROP65: This product contains lead, known to the State of California to cause cancer and birth defects or other reproductive harm.

Features

Rigid one piece high housing
Chrome alloy steel balls
Precision machined housing bore and spherical outer race for full self-alignment
1/4-28 threaded grease fitting and channel through outer race allow relubrication

Specifications

Base to Bore Centerline:	1-9/16 in
Base Width:	1-3/4 in
Bolt Center-to-Center Length:	4-5/16 to 4-15/16 in
Bore Diameter:	1-1/8 in
Bore Type:	Round
Country of Origin:	US
Expansion Type:	Non-Expansion (Fixed)
Finish:	Uncoated
Load Capacity:	655 lb
Locking Device:	Eccentric Collar
Material:	Cast Iron
Maximum Speed:	4500 rpm
Mounting Type:	Two-Bolt Base
Overall Height:	3-1/8 in
Overall Length:	6-1/4 in
Overall Width:	1-59/64 in
Seal Type:	Synthetic Lip
Series:	L Series
Temperature Rating:	-30 to 300 deg F
