6M 1:1 1-L-O MOR

Name: 6M 1:1 1-L-O MOR
Brand: Regal Rexnord
SKU: 6M 1:1 1-L-O MOR
Availability: OutOfStock

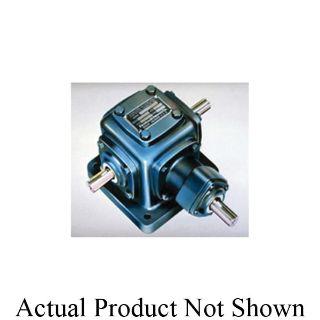

Actual Product May Vary From Image

Product Details

Manufacturer:

Regal Rexnord

Manufacturer part number:

MX0005

CBT Inventory

Vendor Inventory

Availability:

Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Morse®

Description

Morse® M series spiral bevel gear reducers are offered in both rugged cast iron and corrosion resistant aluminum housings. These are line bored for precise gear and bearing alignment. The carburized, lapped and matched AGMA rated spiral bevel gears provide long life and quiet operation. To offer maximum performance, these reducers are designed with tapered roller bearings. Morse® M series spiral bevel gear reducers are available in four sizes. Standard ratios available are 1:1, 1.5:1 and 2:1. Torque capacity ranges from 210 to 7893 in-lb.

Morse® Spiral Bevel Gear Reducer, Series: M Series, 1:1 Gear Ratio, 1 hp, Shaft Input, Shaft Output, 1 in Dia x 2-1/8 in L Input, 1 in Dia x 2-1/8 in L Output, 1750 rpm Output Maximum Speed, 1750 rpm Input Maximum Speed, 932.94 in-lb Input/793 in-lb Output, 3-1/2 in Centre Distance, 1/4 x 1/8 in Keyway, Surface Mount, Cast Iron, 12-7/16 in L x 10-1/4 in W x 7 in H

Application

Aggregate, Cement, Agriculture, Coal Power Generation, Food, Forestry, Metals, Minerals, Mining, Packaging Machinery, Pulp, Paper and Unit Handling Industries

Features

Corrosion resistant aluminum and cast iron housings are line bored for precise gear and bearing alignment
Carburized, lapped and matched AGMA rated spiral bevel gears provide long life and quiet operation
Double lip contact oil seals ride on hardened plunge ground shafts for leak free operation
Integral machined base provides a precision mounting surface for critical shaft alignment
1-L-O assembly position
Standard mounting position
Size 6 gear reducer

Specifications

Centre Distance:	3-1/2 in
Dimensions:	12-7/16 in L x 10-1/4 in W x 7 in H
Gear Ratio:	1:1
Horsepower:	1 hp
Input Maximum Speed:	1750 rpm
Input Size:	1 in Dia x 2-1/8 in L
Input Type:	Shaft
Keyway Size:	1/4 x 1/8 in
Material:	Cast Iron
Mounting Type:	Surface
Output Maximum Speed:	1750 rpm
Output Size:	1 in Dia x 2-1/8 in L
Output Type:	Shaft
Series:	M Series
Torque Rating:	932.94 in-lb Input/793 in-lb Output
