Actual Product May Vary From Image

6NSR10X5/8 BRN

Name: 6NSR10X5/8 BRN
Brand: Regal Rexnord
SKU: 6NSR10X5/8 BRN
Price: 346.78 USD
Availability: OutOfStock

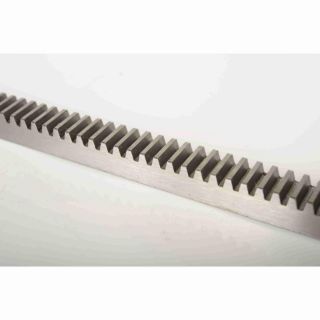

Browning® 1234749 Gear Rack, 10 Diametral Pitch, 14.5 deg, 1 in W Face, 6 ft OAL, 0.525 in, Steel

Manufacturer: Regal Rexnord

Manufacturer part number: 1234749

Availability: Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$346.78

Qty:

Product Details

Brand Name

Browning®

Description

Browning® Gear Rack, 1 in Face Width, 10 Diametral Pitch, 0.525 in Pitch Line to Back, 6 ft Overall Length, 5/8 in Overall Thickness, 14.5 deg Pressure Angle, Steel

Application

Mixers, Mills, Paper, Printing, Pumps, Rubber, Plastics, Oil and Textile Industrial Application

Standards

AGMA Class 11

Features

Cut oversized to allow for matched ends
Up to AGMA class 11 spacing accuracy
Mating spur gears must have same pressure angle and pitch
Standard lengths are extra long to allow for cutting and matching ends

Specifications

Country of Origin:	US
Diametral Pitch:	10
Face Width:	1 in
Material:	Steel
Overall Length:	6 ft
Overall Thickness:	5/8 in
Pitch Line to Back:	0.525 in
Pressure Angle:	14.5 deg
