70 EE FB KOP

Name: 70 EE FB KOP
Brand: Regal Rexnord
SKU: 70 EE FB KOP
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Regal Rexnord

Manufacturer part number:

2297877

CBT Inventory

Vendor Inventory

Availability:

Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Kop-Flex®

Type

Finished Bore Standard

Description

Standard couplings type EE are generally used on close connected equipment and may be mounted for either wide or close shaft separations, at the user's option. This permits ready installation on existing shaft separations and eliminates moving the connected equipment to suit the coupling.

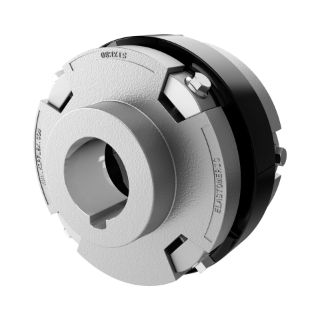

Kop-Flex® Elastomeric™ Resilient Coupling, Finished Bore Standard, 1-1/4 to 3 in Bore, 8-11/16 in OD, 6-5/8 in Overall Length, 8 in Dia Hub, 2-1/8 in Length Through Bore, 4540 in-lb Continuous/13350 in-lb Peak Torque, 3600 rpm Maximum, -50 to 175 deg F

Application

Aggregate, Cement, Coal Power Generation, Food, HVAC, Marine, Metals, Minerals, Mining, Oil, Gas, Packaging Machinery, Pulp, Paper, Turbomachinery, Unit Handling, Water, Wastewater and Wind Power Generation Industries

Features

Non-lubricated design
Maintenance savings through easily replaceable rubber elements in the application, without moving the driving or driven equipment
Easy to assemble and operate in hot, wet, gritty tough environment
Widely used in hot strip mill roller table application
7 coupling size

Specifications

Bore Diameter:	1-1/4 to 3 in
Hub Size:	8 in Dia
Length Through Bore:	2-1/8 in
Maximum Speed:	3600 rpm
Outside Diameter:	8-11/16 in
Overall Length:	6-5/8 in
Temperature Rating:	-50 to 175 deg F
Torque Rating:	4540 in-lb Continuous/13350 in-lb Peak
