701-00008-016 RND

Name: 701-00008-016 RND
Brand: Rexnord
SKU: 701-00008-016 RND
Price: 61.80 USD
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Rexnord

Manufacturer part number:

701-00008-016

CBT Inventory

Vendor Inventory

Availability:

Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

$61.80 / EA

Description

Brand Name

Duralon®

Type

Straight Sleeve

Description

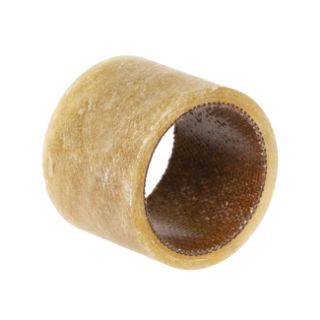

Duralon® Filament Bearing, Straight Sleeve, Series: Thinwall Series, 0.504 in Bore, 0.6267 in OD, 4828.8 psi Dynamic/18590.88 psi Static Load, PTFE Fiber Bearing, -65 to 325 deg F Continuous/400 deg F Intermittent

Features

Oscillatory, pivot, linear sliding and slow speed full rotation
Co-efficients vary from 0.16 at 500 psi to 0.07 at 20000 psi
Filament wound back-up material is an electrical insulator
Resistant to most chemicals
Construction of woven high strength fiber and bondable yarns provide optimized strength/weight ratio, 77% less than steel and 30% less than aluminum
Base materials provide high corrosion and seizure-resistance
Self-lubricating materials eliminate complex lube systems and lubricant contaminants
Non-metallic construction reduces noise volume, provides electrical insulation and can be approved for non-contact USDA use
The bearing consists of a self-lubricating woven PTFE fiber and polyester fiber liner supported by a filament wound continuous fiberglass fiber and epoxy resin matrix

Specifications

Bearing Material:	PTFE Fiber
Bore Diameter:	0.504 in
Load Capacity:	4828.8 psi Dynamic/18590.88 psi Static
Outside Diameter:	0.6267 in
Series:	Thinwall Series
Temperature Rating:	-65 to 325 deg F Continuous/400 deg F Intermittent
