Name: 701-00016-062 RND
Brand: Rexnord
SKU: 701-00016-062 RND
Availability: OutOfStock

701-00016-062 RND

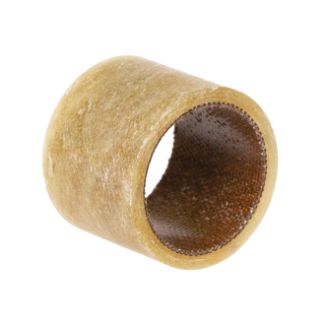

Actual Product May Vary From Image

Product Details

Manufacturer:

Rexnord

Manufacturer part number:

701-00016-062

CBT Inventory

Vendor Inventory

Availability:

Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Duralon®

Type

Straight Sleeve

Description

Duralon® Filament Bearing, Straight Sleeve, Series: Thinwall Series, 1.004 in Bore, 1.189 in OD, 38475.08 psi Dynamic/148129.06 psi Static Load, PTFE Fiber Bearing, -65 to 325 deg F Continuous/400 deg F Intermittent

Features

Oscillatory, pivot, linear sliding and slow speed full rotation
Co-efficients vary from 0.16 at 500 psi to 0.07 at 20000 psi
Filament wound back-up material is an electrical insulator
Resistant to most chemicals
The bearing consists of a self-lubricating woven PTFE fiber and polyester fiber liner supported by a filament wound continuous fiberglass fiber and epoxy resin matrix

Specifications

Bearing Material:	PTFE Fiber
Bore Diameter:	1.004 in
Load Capacity:	38475.08 psi Dynamic/148129.06 psi Static
Outside Diameter:	1.189 in
Series:	Thinwall Series
Temperature Rating:	-65 to 325 deg F Continuous/400 deg F Intermittent
