701-00044-048 RND

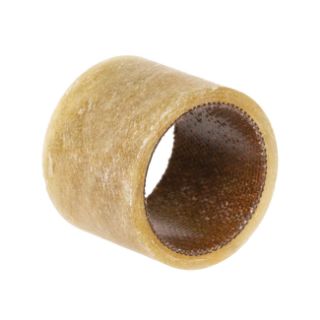

Picture of 701-00044-048 RND
Actual Product May Vary From Image

Product Details

Manufacturer:
Rexnord
Manufacturer part number:
701-00044-048
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 3-5 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$401.64 / EA

Description

Brand Name

Duralon®

Type

Straight Sleeve

Description

Duralon® Filament Bearing, Straight Sleeve, Series: Thinwall Series, 2.755 in Bore, 2.949 in OD, 81518.4 psi Dynamic/313845.84 psi Static Load, PTFE Fiber Bearing, -65 to 325 deg F Continuous/400 deg F Intermittent

Features

  • Oscillatory, pivot, linear sliding and slow speed full rotation
  • Co-efficients vary from 0.16 at 500 psi to 0.07 at 20000 psi
  • Filament wound back-up material is an electrical insulator
  • Resistant to most chemicals
  • The bearing consists of a self-lubricating woven PTFE fiber and polyester fiber liner supported by a filament wound continuous fiberglass fiber and epoxy resin matrix

Specifications

Bearing Material:PTFE Fiber
Bore Diameter:2.755 in
Load Capacity:81518.4 psi Dynamic/313845.84 psi Static
Outside Diameter:2.949 in
Series:Thinwall Series
Temperature Rating:-65 to 325 deg F Continuous/400 deg F Intermittent
