Home / 703000B01F200 WOO

703000B01F200 WOO

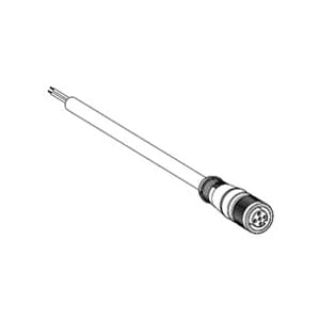

Picture of 703000B01F200 WOO
Actual Product May Vary From Image

Product Details

Manufacturer:
Molex/Woodhead
Manufacturer part number:
120072-0802
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 5-7 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$110.36 / EA

Description

Brand Name

Woodhead®

Type

Single End

Description

Woodhead® Brad® Micro-Change® Cordset, Single End, Series: 120072, 1/2-20 UNF Connector, PVC, 20 ft Cable Length, Polyurethane Cable, 3 Poles, Double Keyway, 250 VAC/VDC, 4 A, Black/Blue/Brown Wire Pin Colors, NEMA 6P/IP68

Standards

CSA LR6837 | RoHS Compliant | UL E152210

Features

  • 18 AWG 3 conductor cable
  • Oil-resistant PVC jacket
  • Highly reliable low-resistance contact design with gold/palladium nickel plating
  • Nylon 6/6 connector face and nitrile rubber o-ring
  • Straight female to pigtail connection
  • 0.18 in cable diameter
  • 1/2-20 UNF mating thread connector

Specifications

Amperage Rating:4 A
Cable Length:20 ft
Cable Material:Polyurethane
Connector Material:PVC
Connector Size:1/2-20 UNF
Keyway:Double
NEMA Rating:NEMA 6P/IP68
Number of Poles:3
Series:120072
Voltage Rating:250 VAC/VDC
Wire Pin Colors:Black/Blue/Brown
