Home / 703000D02F120 WOO

703000D02F120 WOO

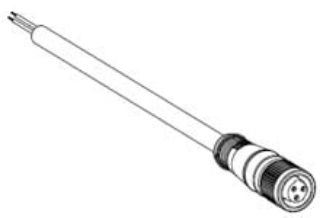

Picture of 703000D02F120 WOO
Actual Product May Vary From Image

Product Details

Manufacturer:
Molex/Woodhead
Manufacturer part number:
703000D02F120
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Expected Leadtime 7 days
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$66.30 / EA

Description

Brand Name

Brad®

Type

Single Ended

Description

Micro-Change® (M12) industry standard connectors are rugged, compact, sealed connectors used for sensor/actuator connectivity in industrial control applications. Micro-Change® (M12) connectors are designed to withstand harsh-industrial and weather environments with superior quality that assures very reliable connections for control elements in automated equipment. These high-quality connectors allow fast and simple replacement of sensors, encoders, switches and other input and output devices in industrial machinery.
Brad® Micro-Change® Molex® Cordset, Single Ended, Series: 120072, Straight Female x Pigtail Connector, 1/2-20 UNF Connector, 22 AWG Cable, 3.7 m Cable Length, PVC Cable, 3 Pole, Dual Keyway, 250 VAC/VDC, 4 A

Application

For AC powered sensors

Standards

CSA File No. LR6837 | UL File No. E152210 | UL 2661

Features

  • M12 design meets IEC specifications
  • Industry standard interface compatible with a wide array of sensors and switches
  • Provides a longer lasting, high performance electrical contact
  • Prevents the coupler from loosening even under extreme vibration
  • Harsh duty receptacle

Specifications

Amperage Rating:4 A
Cable Length:3.7 m
Cable Material:PVC
Cable Type:22 AWG
Connector Size:1/2-20 UNF
Connector Type:Straight Female x Pigtail
Country of Origin:MX
Keyway:Dual
Number of Poles:3
Series:120072
Voltage Rating:250 VAC/VDC
