Home / 703000D02F200 WOO

703000D02F200 WOO

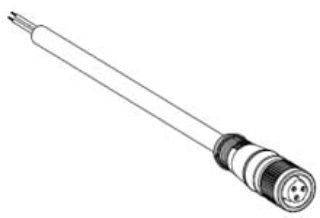

Picture of 703000D02F200 WOO
Actual Product May Vary From Image

Product Details

Manufacturer:
Molex/Woodhead
Manufacturer part number:
703000D02F200
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Expected Leadtime 7 days
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$82.35 / EA

Description

Brand Name

Brad®

Type

Single Ended

Description

Micro-Change® (M12) connectors are designed to withstand harsh-industrial and weather environments with superior quality that assures very reliable connections for control elements in automated equipment. These high-quality connectors allow fast and simple replacement of sensors, encoders, switches and other input and output devices in industrial machinery.
Brad® Micro-Change® Woodhead® Cordset, Single Ended, Series: 120072, Straight Female x Pigtail Connector, 1/2-20 UNF Connector, PVC Connector, 22 AWG Cable, 6.1 m Cable Length, PVC Cable, 3 Pole, Dual Keyway, 250 VAC/VDC, 4 A, Black/Green/Red/White Wire Pin, NEMA 6P NEMA Rating

Application

Construction and Mining Equipment, Sensors, Machine Lighting, Standard Industrial Lighting, C4ISR, Ground Vehicle Networks, Shelters, Automated Assembly Equipment, Conveyor Systems, Material Handling, Packaging Equipment and Pick and Place Robots

Standards

CSA File No. LR6837 | UL File No. E152210 | UL 2661

Features

  • M12 design meets IEC specifications industry standard interface compatible with a wide array of sensors and switches
  • Ideal for class 2 power and network circuit applications
  • Provides a longer lasting, high performance electrical contact
  • Prevents the coupler from loosening even under extreme vibration
  • Robust housing provides superior electro magnetic interference (EMI) and radio frequency interference (RFI) protection
  • Watertight panel mount design, enables enclosure meets NEMA 6P and IP67 protection
  • Nylon 6/6 connector face, nitrile rubber O-ring, zinc die cast with black epoxy-coat
  • Auto color code 2P to 6P

Specifications

Amperage Rating:4 A
Cable Length:6.1 m
Cable Material:PVC
Cable Type:22 AWG
Connector Material:PVC
Connector Size:1/2-20 UNF
Connector Type:Straight Female x Pigtail
Country of Origin:MX
Keyway:Dual
NEMA Rating:NEMA 6P
Number of Poles:3
Series:120072
Voltage Rating:250 VAC/VDC
Wire Pin Colors:Black/Green/Red/White
