705001D02F060 WOO

Micro-Change® connectors are designed to withstand harsh-industrial environments and their superior quality assures a very reliable connection for control elements in automated equipment. These IEC 61076-2-101 compliant connectors allow fast and simple connections to 12 and 18 mm sensors, encoders, switches and other input and output devices in industrial machinery. Brad® complete line of M12 connectivity provides a quick-connect wiring system that eliminates field install cabinets and minimizes field wiring termination errors.

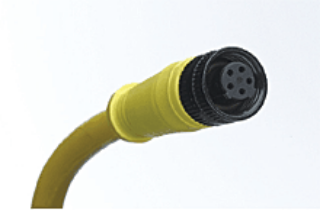

Brad® Micro-Change® Woodhead® Cordset, Single Ended Threaded, Series: 120072, 90 deg Female x Straight Pigtail Connector, 1/2-20 UNF Connector, PVC Connector, 22 AWG AWM Cable, 1.83 m Cable Length, PVC Cable, 5 Pole, Dual Keyway, 250 VAC/VDC, 4 A, Green/Red/Red-Black/Red-White/Red-Yellow Wire Pin, IEC 61076-2-101 IEC, NEMA 6 NEMA Rating
