Home / 705001D02F120 WOO

705001D02F120 WOO

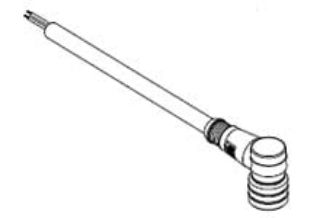

Picture of 705001D02F120 WOO
Actual Product May Vary From Image

Product Details

Manufacturer:
Molex/Woodhead
Manufacturer part number:
705001D02F120
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Expected Leadtime 12 days
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$102.28 / EA

Description

Brand Name

Brad®

Type

Single Ended

Description

Micro-Change®(M12) connectors are designed to withstand harsh industrial and weather environments with superior quality that assures very reliable connections for control elements in automated equipment. These high-quality connectors allow fast and simple replacement of sensors, encoders, switches and other input and output devices in industrial machinery.
Brad® Cordset, Single Ended, Series: 120072, Female Connector, 1/2-20 UNF Connector, PVC Connector, Shielded Cable, 12 ft Cable Length, PVC Cable, 5 Pole, Dual Keyway, 250 VAC/VDC, 4 A, Black/Green/Red/White/Yellow Wire Pin, IP67 NEMA Rating

Application

Construction and Mining Equipment, Sensors, Machine Lighting, Standard Industrial Lighting, C4ISR, Ground Vehicle Networks, Shelters, Automated Assembly Equipment, Conveyor Systems, Material Handling, Packaging Equipment, Pick and Place Robots

Standards

UL 2661 | E152210 | CSA LR6837 | CE Certified

Features

  • M12 design meets IEC specifications
  • Ideal for class 2 power and network circuit applications
  • Provides a longer lasting, high performance electrical contact
  • Prevents the coupler from loosening even under extreme vibration
  • Robust housing provides superior electro magnetic interference (EMI) and radio frequency interference (RFI) protection
  • Watertight® panel mount design
  • Copper alloy contact, black epoxy coated zinc coupling nut, nitrile rubber O-ring, gold over nickel plating mating material
  • -20 to 105 deg C operating temperature
  • 22 AWG yellow cable

Specifications

Amperage Rating:4 A
Cable Length:12 ft
Cable Material:PVC
Cable Type:Shielded
Connector Material:PVC
Connector Size:1/2-20 UNF
Connector Type:Female
Country of Origin:US
Keyway:Dual
NEMA Rating:IP67
Number of Poles:5
Series:120072
Voltage Rating:250 VAC/VDC
Wire Pin Colors:Black/Green/Red/White/Yellow
