705006A03F060 WOO

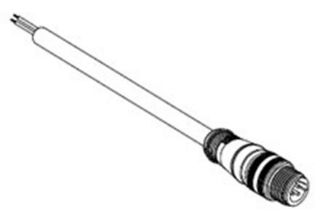

Picture of 705006A03F060 WOO
Actual Product May Vary From Image

Product Details

Manufacturer:
Molex/Woodhead
Manufacturer part number:
705006A03F060
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 5-7 days.
Estimated dates are contingent upon manufacturer stock.
Price on Request

Description

Brand Name

Micro-Change® (1/2" - 20 UNF)

Description

Micro-Change? (1/2"-20 UNF) Single-Ended Cordset, 5 Poles, Male (Straight) to Pigtail, 5-22 AWG PVC Cable, 1.83m Length

Specifications

Amperage Rating:4A
Cable Diameter:7.16mm (.282")
Cable Jacket Material:PVC
Cable Length:1.83m
Color:Yellow
Conductor Range:22
Connector Body Material:PVC
Connector End A:Micro-Change® (1/2" - 20 UNF)
Connector End B:Pigtail
Country of Origin:MX
Environmental Conditions:IP67
Gender:Male-Pigtail
Keyway:Dual
LED Indicator:No
Plating Mating Material:Gold over Nickel
Temperature Rating:-20°C to +105°C
Voltage Rating:250V AC/DC
