Home / 706000D02F120 WOO

706000D02F120 WOO

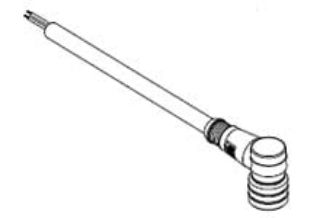

Picture of 706000D02F120 WOO
Actual Product May Vary From Image

Product Details

Manufacturer:
Molex (Woodhead)
Manufacturer part number:
706000D02F120
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Expected Leadtime 7 days
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$94.63 / EA

Description

Brand Name

Brad®

Type

Single Ended

Description

Micro-Change®(M12) connectors are designed to withstand harsh-industrial and weather environments with superior quality that assures very reliable connections for control elements in automated equipment. These high-quality connectors allow fast and simple replacement of sensors, encoders, switches and other input and output devices in industrial machinery.
Brad® Cordset, Single Ended, Series: 120072, Straight Female Connector, 1/2-20 UNF Connector, PVC Connector, 12 ft Cable Length, PVC Cable, 6 Pole, Dual Keyway, 250 VAC/VDC, 4 A, Black/Blue/Green/Red/White/Yellow Wire Pin, NEMA 6P/IP68 NEMA Rating

Application

Construction and Mining Equipment, Sensors, Machine Lighting, Standard Industrial Lighting, C4ISR, Ground Vehicle Networks, Shelters, Automated Assembly Equipment, Conveyor Systems, Material Handling, Packaging Equipment, Pick and Place Robots

Standards

UL E152210 | CSA LR6837

Features

  • M12 design meets IEC specifications industry standard interface compatible with a wide array of sensors and switches
  • Ideal for class 2 power and network circuit applications
  • Provides a longer lasting, high performance electrical contact
  • Prevents the coupler from loosening even under extreme vibration
  • Robust housing provides superior electro magnetic interference (EMI) and radio frequency interference (RFI) protection
  • Watertight® panel mount design, enables enclosure meets NEMA 6P and IP67 protection
  • 0.29 in Dia cable
  • -20 to 105 deg C operating temperature
  • Nylon 6/6 connector face, nitrile rubber O-ring, zinc die cast with black epoxy coat, optional stainless steel type 303 coupling nut
  • Auto color code 2P to 6P
  • 22 AWG cable

Specifications

Amperage Rating:4 A
Cable Length:12 ft
Cable Material:PVC
Connector Material:PVC
Connector Size:1/2-20 UNF
Connector Type:Straight Female
Country of Origin:US
Keyway:Dual
NEMA Rating:NEMA 6P/IP68
Number of Poles:6
Series:120072
Voltage Rating:250 VAC/VDC
Wire Pin Colors:Black/Blue/Green/Red/White/Yellow
