707082L GRO

Name: 707082L GRO
Brand: Grove Gear
SKU: 707082L GRO
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Grove Gear

Manufacturer part number:

707082L

CBT Inventory

Vendor Inventory

Availability:

1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Grove Gear®

Type

Single Reducer

Description

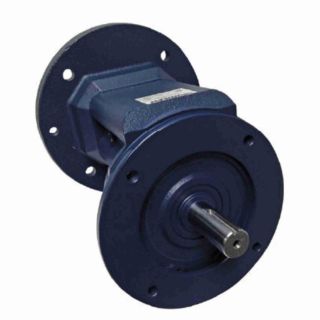

Grove Gear® Helical Ratio Multiplier, Single Reducer, Series: RM Series, 5.167 Gear Ratio, 10.07 hp Input, 9.87 hp Output, C-Face Quill Input, Solid Shaft Output, 1-1/8 in Dia Input, 1-3/8 in Dia Output, 339 rpm Output Maximum Speed, 1750 rpm Input Maximum Speed, 1836 in-lb Output, 1.909 in Centre Distance, 0.25 x 0.125 in Input, 0.312 x 0.156 x 2.63 in Output Keyway, PAG Synthetic Oil Lubrication, Cast Iron, 7-1/2 in W

Standards

USDA H1 Compliant

Features

The dual purpose design can be used as a stand alone single reduction inline reducer or as a bolt-on to the input of any C-faced gear reducer to multiply overall reduction ratio
Factory filled with premium Mobil® Glygoyle® 460 PAG lubricant - USDA class H1 approved
FKM double lip seals provide extended life through increased resistance to high temperature, abrasion and chemicals
180TC to 210TC input/output
Helical gearing to optimize system efficiency
Cast iron housing

Specifications

Centre Distance:	1.909 in
Dimensions:	7-1/2 in W
Gear Ratio:	5.167
Horsepower:	10.07 hp Input, 9.87 hp Output
Input Maximum Speed:	1750 rpm
Input Size:	1-1/8 in Dia
Input Type:	C-Face Quill
Keyway Size:	0.25 x 0.125 in Input, 0.312 x 0.156 x 2.63 in Output
Lubrication Type:	PAG Synthetic Oil
Material:	Cast Iron
Output Maximum Speed:	339 rpm
Output Size:	1-3/8 in Dia
Output Type:	Solid Shaft
Series:	RM Series
Torque Rating:	1836 in-lb Output
