Actual Product May Vary From Image

7075ST NER

Name: 7075ST NER
Brand: Appleton
SKU: 7075ST NER
Price: 1.44 USD
Availability: InStock

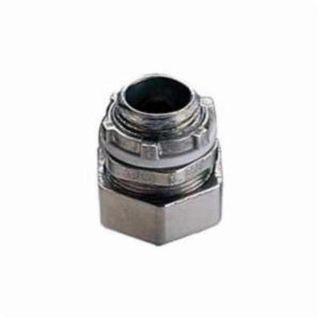

3/4 IN EMT COMP CONN INSUL

Manufacturer: Appleton

Manufacturer part number: 7075ST

Availability: Ships in 5-7 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
965	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$1.44

Qty:

Product Details

Brand Name

Appleton/O-Z/Gedney

Type

EMT Conduit Straight Compression Connector

Description

Features:1 1/32IN Dia X 1 1/4IN Length, 7/16 IN Thread Length, Concretetight, Standard:UL 514B, CSA C22.2, NEMA FB-1, Size:0.75IN, Connection:Male NPS Thread, Material:Steel, Finish:Zinc Electro Plated,Insulation:Insulated Throat, Temperature Rating:90CE

Standards

UL 514B, CSA C22.2, NEMA FB-1

Features

1 1/32 IN Dia X 1 1/4 IN Length, 7/16 IN Thread Length, Concretetight

Specifications

Connection:	Male NPS Thread
Country of Origin:	USA
Finish:	Zinc Electro Plated
Insulation:	Insulated Throat
Material:	Steel
Size:	0.75 IN
Sub Brand:	ETP
Temperature Rating:	90 DEG C

Resources

Spec Sheet

Customers who bought this item also bought

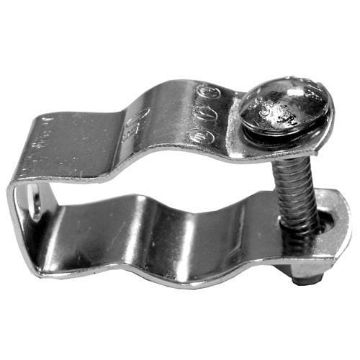

CH100B NER
