7102-C LEV

Product Details

Manufacturer part number:
7102-C
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 5-7 days.
Estimated dates are contingent upon manufacturer stock.

Description

Brand Name

Leviton®

Type

Cable Mount Non-Grounding

Alternate Supplier #

Grainger - 25LK64

Description

Leviton® industrial grade locking devices are built to provide unparalleled quality and superior performance in the most severe industrial settings. Leviton® combines the best materials available with superior production standards to produce a broad selection of locking devices of unmatched flexibility and dependability.

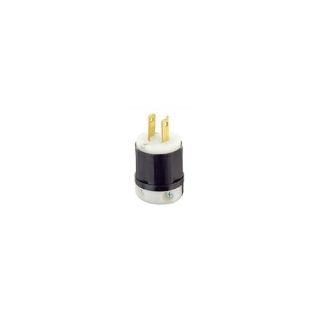

Leviton® Black & White® Locking Plug, Cable Mount Non-Grounding, 250 VAC, 20 A, 2 hp, 2 Poles, 2 Wires, NEMA L2-20P, Industrial Grade, 0.245 to 0.7 in Cord Dia, -40 to 60 deg C, Screw Terminal, Nylon, Black/White, 1.53 in Dia x 2.71 in H

Application

Industrial Applications

Standards

ANSI C73 | CSA C22.2 No.42 File No. LR406 | NOM 057 | NEMA WD1/WD6 | UL 498 File No. E13393 | Federal Specification WC596 | UL94 V-2 Flammability Rating

Features

Certified for current interrupting at full rated current

Specifications

Amperage Rating:20 A
Color:Black/White
Cord Diameter:0.245 to 0.7 in
Country of Origin:MX
Dimensions:1.53 in Dia x 2.71 in H
Grade:Industrial
Horsepower:2 hp
Material:Nylon
NEMA Rating:NEMA L2-20P
Number of Poles:2
Number of Wires:2
Temperature Rating:-40 to 60 deg C
Terminal Type:Screw
Voltage Rating:250 VAC
