Picture of 7150S NER
Actual Product May Vary From Image

7150S NER

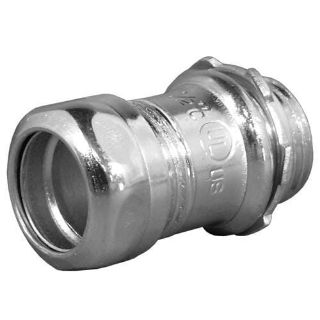

Appleton® ETP™ 7150S 7000S Non-Insulated Throat Straight Compression Connector, 1-1/2 in Trade, For Use With EMT Conduit, Steel, Zinc Electroplated
Manufacturer: Appleton
Manufacturer part number: 7150S
Availability: Ships in 5-7 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
3 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$5.25

Product Details

Brand Name

Appleton®

Type

Non-Insulated Throat Straight

Description

Appleton® offer ETP™ 7000S Series steel EMT compression connectors. They are used to ground and secure EMT raceways to boxes and enclosures. The 7000S Series have a male NPS threaded hub and are available with or without an insulated throat.
Appleton® ETP™ Compression Connector, Non-Insulated Throat Straight, Series: 7000S, 1-1/2 in Trade, 2.19 in Diameter, For Use With: EMT Conduit, Steel, Metallic, Zinc Electroplated Finish, 2 in L Dimensions

Application

For grounding, securing EMT raceways to boxes and enclosures

Standards

RoHS Compliant | CSA 028507 | C22.2 No. 18.3 | cUL E14815 | NEMA FB-1 | UL 514B File No. E14815 | UL File No. E14895

Features

  • Male hub NPS thread connection
  • Concrete tight

Specifications

Color:Metallic
Country of Origin:IN
Diameter:2.19 in
Dimensions:2 in L
Finish:Zinc Electroplated
Material:Steel
Series:7000S
Suitable For Use With:EMT Conduit
Trade Size:1-1/2 in
