7206WN DU TKN

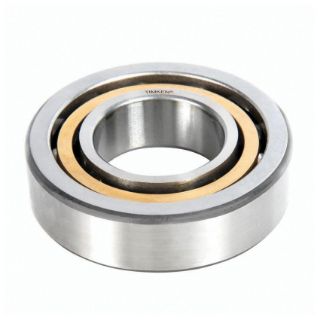

Picture of 7206WN DU TKN
Actual Product May Vary From Image

Product Details

Manufacturer:
Timken
Manufacturer part number:
7206WN DU
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 3-5 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$650.15 / EA

Description

Brand Name

Fafnir®

Type

Light Duty

Description

Timken® angular contact ball bearings are designed for combination radial and axial loading. Single-row bearings have high thrust capacity in one direction. Some single-row bearings are specifically designed for duplex mounting in sets for maximum performance. Double-row conrad bearings can accommodate thrust in both directions.
Timken® Fafnir®, 7206WN DU, Angular Contact Ball Bearing, Light Duty, Series: 7200, 30 mm Bore, 62 mm OD, 1 Rows, 16 mm Width, 40 deg Contact Angle, 4700 lb Dynamic/3050 lb Static Load, Steel Bearing, Bronze Cage, -50 to 120 deg C

Application

Agriculture, Chemical, General Industry and Utilities

Features

  • Specific geometry of angular contact bearing raceways and shoulders creates ball contact angles that support higher axial loads
  • Dimensionally interchangeable with the radial 200 series
  • 7000WN product family includes a refined bore diameter
  • A single bearing is suggested for applications in which the thrust load is in one direction or in the case of combined loads, the thrust load is high in relation to the radial load
  • A duplex pair is suggested for applications where thrust is present in both directions or where axial displacement of the shaft must be restricted
  • For exceptionally high thrust loads in one direction, a tandem pair can be used, opposed by a third bearing
  • Sizes 7201K through 7203WN have a 20 deg contact angle and a nylon cage
  • Sizes 7204WN through 7218WN have a 40 deg contact angle and a one-piece, ball-piloted, pressed-brass cage
  • Larger sizes 7219WN through 7230WN have a 40 deg contact angle and a one-piece, outer-ring piloted high-strength machined bronze cage

Specifications

Bearing Material:Steel
Bore Diameter:30 mm
Cage Material:Bronze
Contact Angle:40 deg
Country of Origin:US
Load Capacity:4700 lb Dynamic/3050 lb Static
Number of Rows:1
Outside Diameter:62 mm
Series:7200
Temperature Rating:-50 to 120 deg C
Width:16 mm

Products Specifications

Bore Size
30 mm
Brand Name
Timken
