7218WN SU TKN

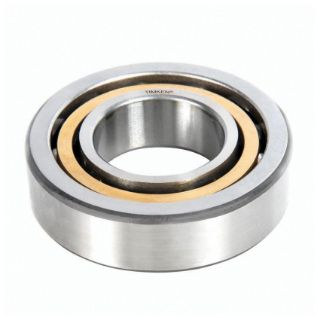

Picture of 7218WN SU TKN
Actual Product May Vary From Image

Product Details

Manufacturer:
Timken
Manufacturer part number:
7218WNSU
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 3-5 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$758.91 / EA

Description

Brand Name

Fafnir®

Type

Light Duty

Description

Timken® angular contact ball bearings are designed for combination radial and axial loading. Single-row bearings have high thrust capacity in one direction. Some single-row bearings are specifically designed for duplex mounting in sets for maximum performance. Double-row conrad bearings can accommodate thrust in both directions.
Timken® Fafnir®, 7218WNSU, Angular Contact Ball Bearing, Light Duty, Series: 7200, 90 mm Bore, 160 mm OD, 1 Rows, 30 mm Width, 40 deg Contact Angle, Open Closure, 23800 lb Dynamic/21200 lb Static Load, Steel Bearing, Pressed Brass Cage, 3020 rpm Maximum, -50 to 120 deg C, Uncoated

Application

Agriculture, Chemical, General Industry and Utilities

Features

  • Specific geometry of angular contact bearing raceways and shoulders creates ball contact angles that support higher axial loads
  • Dimensionally interchangeable with the radial 200 series
  • 7000WN product family includes a refined bore diameter
  • A single bearing is suggested for applications in which the thrust load is in one direction or in the case of combined loads, the thrust load is high in relation to the radial load
  • A duplex pair is suggested for applications where thrust is present in both directions or where axial displacement of the shaft must be restricted
  • For exceptionally high thrust loads in one direction, a tandem pair can be used, opposed by a third bearing
  • Sizes 7201K through 7203WN have a 20 deg contact angle and a nylon cage
  • Sizes 7204WN through 7218WN have a 40 deg contact angle and a one-piece, ball-piloted, pressed-brass cage
  • Larger sizes 7219WN through 7230WN have a 40 deg contact angle and a one-piece, outer-ring piloted high-strength machined bronze cage

Specifications

Bearing Material:Steel
Bore Diameter:90 mm
Cage Material:Pressed Brass
Closure Type:Open
Contact Angle:40 deg
Country of Origin:US
Finish:Uncoated
Load Capacity:23800 lb Dynamic/21200 lb Static
Maximum Speed:3020 rpm
Number of Rows:1
Outside Diameter:160 mm
Series:7200
Temperature Rating:-50 to 120 deg C
Width:30 mm

Products Specifications

Bore Size
90 mm
Brand Name
Timken
