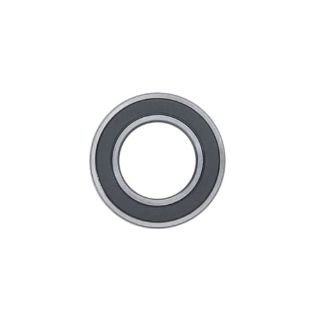

7224BMG BLT

Product Details

Manufacturer:
Manufacturer part number:
7224BMG
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
1-2 weeks.
Estimated dates are contingent upon manufacturer stock.
Price on Request

Description

Brand Name

TRITAN®

Type

Light Duty

Description

Single Row Angular Contact Ball Bearings are used in applications that call for thrust or combination thrust and radial loads. Standard production is made with a 40 deg contact angle (B suffix but can also be produced with a 25 deg contact angle (A suffix) or 15 deg angle (C suffix). Retainers are constructed of steel (B/BG) or brass (B/BMG). Non-metallic cages can be made upon request.
TRITAN® Angular Contact Ball Bearing, Light Duty, Series: 7200 Series, 120 mm Bore, 215 mm OD, 1 Rows, 40 mm Width, 40 deg Contact Angle, 36000 lb Load, 52100 Chromium Steel Bearing, Polyamide Cage, 2100 rpm Grease/2800 rpm Oil Maximum

Application

For thrust or combination thrust and radial loads applications

Standards

AFBMA Standard

Features

36000 lb dynamic/35998 lb static load

Specifications

Bearing Material:52100 Chromium Steel
Bore Diameter:120 mm
Cage Material:Polyamide
Contact Angle:40 deg
Load Capacity:36000 lb
Maximum Speed:2100 rpm Grease/2800 rpm Oil
Number of Rows:1
Outside Diameter:215 mm
Series:7200 Series
Width:40 mm
