722784 LST

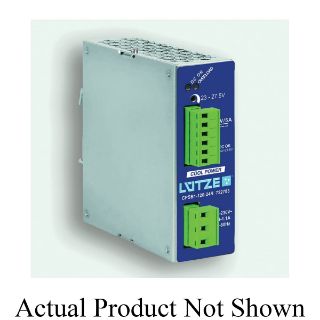

Picture of 722784 LST
Actual Product May Vary From Image

Product Details

Manufacturer:
Lutze
Manufacturer part number:
722784
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
1-2 weeks.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$254.77 / EA

Description

Brand Name

LUTZE

Type

1-Phase Primary Switch Mode

Description

LUTZE® power supplies were developed with technical innovations in mind. LUTZE® Compact power supplies are appr 50% smaller in size than the industry standard, and yet offer more than 94% efficiency and are suitable for temperature ranges between -25 to +75 deg C.
LUTZE Power Supply, 1-Phase Primary Switch Mode, Series: Compact Economy, 90 to 264 VAC/110 to 345 VDC Input, 48 VDC Output, 120 W Power, 2.5 A, 47 to 63 Hz Frequency, DIN Rail Mounting, Aluminum Case, 40 mm Width, 134 mm Depth, 115 mm Height

Application

For industrial applications

Standards

CE Certified | cULus E249179/60950/61000-4-2/3/4/5/6/11/6-2/6-4 | IEC 950 | RoHS Compliant | UL 508/60950 | WEEE Compliant

Features

  • Suitable for industrial applications especially where high inrush power is required, as well as when compact housing or extended reliability are desired
  • Short circuit and overload protection
  • Adjustable output voltage
  • Output alarm relay
  • High efficiency
  • IP20 protection class
  • Parallel operation
  • Extremely compact footprint

Specifications

Amperage Rating:2.5 A
Case Material:Aluminum
Country of Origin:TW
Depth:134 mm
Frequency Rating:47 to 63 Hz
Height:115 mm
Input Voltage:90 to 264 VAC/110 to 345 VDC
Mounting Type:DIN Rail
Output Voltage:48 VDC
Power Rating:120 W
Series:Compact Economy
Width:40 mm
