722812 LST

Name: 722812 LST
Brand: Lutze
SKU: 722812 LST
Price: 1,057.11 USD
Availability: OutOfStock

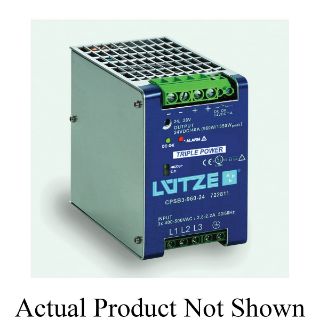

Actual Product May Vary From Image

Product Details

Manufacturer:

Lutze

Manufacturer part number:

722812

CBT Inventory

Vendor Inventory

Availability:

1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

$1,057.11 / EA

Description

Brand Name

LUTZE

Type

3-Phase Primary Switch Mode

Description

LUTZE® power supplies were developed with technical innovations in mind. LUTZE® Compact power supplies are appr 50% smaller in size than the industry standard, and yet offer more than 94% efficiency and are suitable for temperature ranges between -25 to +75 deg C.

LUTZE Power Supply, 3-Phase Primary Switch Mode, Series: rCompact, 340 to 550 VAC Input, 48 VDC Output, 960 W Power, 20 A, 47 to 63 Hz Frequency, DIN Rail Mounting, Aluminum Case, 80 mm Width, 147.5 mm Depth, 127 mm Height

Application

For industrial applications

Standards

cULus E249179 | EN 50081-1/2-2/60950/61000-4-2/3/4/5/6/11/6-2/6-4 | IEC 950 | UL 508

Features

Suitable for industrial applications especially where high inrush power is required, as well as when compact housing or extended reliability are desired
Short circuit and overload protection
Adjustable output voltage
Output alarm relay
High efficiency
IP20 protection class
Parallel operation
Extremely compact footprint

Specifications

Amperage Rating:	20 A
Case Material:	Aluminum
Country of Origin:	TW
Depth:	147.5 mm
Frequency Rating:	47 to 63 Hz
Height:	127 mm
Input Voltage:	340 to 550 VAC
Mounting Type:	DIN Rail
Output Voltage:	48 VDC
Power Rating:	960 W
Series:	rCompact
Width:	80 mm
