722999 LST

Name: 722999 LST
Brand: Lutze
SKU: 722999 LST
Price: 478.94 USD
Availability: OutOfStock

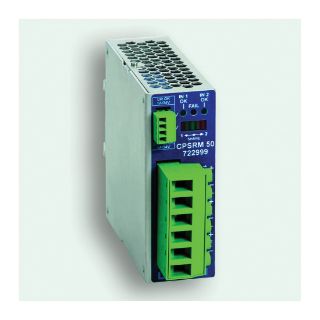

Actual Product May Vary From Image

Product Details

Manufacturer:

Lutze

Manufacturer part number:

722999

CBT Inventory

Vendor Inventory

Availability:

1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

$478.94 / EA

Description

Brand Name

LUTZE

Type

1-Phase Redundancy Module

Description

LUTZE® redundant modules were developed with technical innovations in mind. LUTZE® Compact units are appr 50% smaller in size than the industry standard and are suitable for temperature ranges between -40 to +75 deg C.

LUTZE Power Supply, 1-Phase Redundancy Module, Series: Compact, 12 to 85 VDC Input, 24 VDC Output, 50 A Input, 300 A Output, Plug-In/Screw Terminal, IP20 Enclosure, DIN Rail Mounting, -40 to 75 deg C, 40 mm W x 146.5 mm D x 115 mm H Size, Aluminum

Application

For industrial applications

Standards

cULus E247179 | EN 55022 Class B/55024/61000-4-2/3/4/6/8/61204-3 | UL 508

Features

Suitable for industrial applications especially where high inrush power is required, as well as when compact housing or extended reliability are desired
Short circuit and overload protection
Adjustable output voltage
Output alarm relay
High efficiency
Parallel operation
Extremely compact footprint

Specifications

Country of Origin:	TW
Enclosure Type:	IP20
Input Amperage:	50 A
Input Voltage:	12 to 85 VDC
Material:	Aluminum
Mounting Type:	DIN Rail
Output Amperage:	300 A
Output Voltage:	24 VDC
Series:	Compact
Size:	40 mm W x 146.5 mm D x 115 mm H
Temperature Rating:	-40 to 75 deg C
Terminal Type:	Plug-In/Screw
