723601 LST

Name: 723601 LST
Brand: Lutze
SKU: 723601 LST
Price: 266.90 USD
Availability: OutOfStock

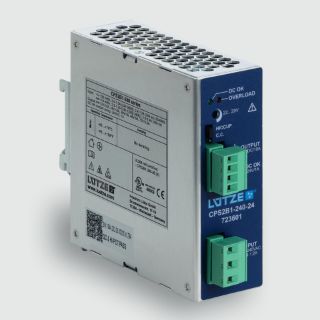

Actual Product May Vary From Image

Product Details

Manufacturer:

Lutze

Manufacturer part number:

723601

CBT Inventory

Vendor Inventory

Availability:

1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

$266.90 / EA

Description

Brand Name

LUTZE

Type

Primary Switched

Description

LUTZE, 723601, Power Supply, Primary Switched, Series: Compact, 120/240 V Input, 24 VDC Output, 240 W Power, 10 A, 47 to 63 Hz Frequency, TS32/TS35 DIN Rail Mounting, Aluminium Case, 40 mm Width, 133 mm Depth, 115 mm Height

Application

For industrial applications

Standards

cULus E249179 | EN 60950/50178/55011/55022/60529 | IEC 61000-4-2/3/4/5/11 | IEC 60068-2-6 | IEC 60068-2-27

Features

-40 to 70 deg C operating/-40 to 85 deg C storage
10 AT or MCB 10A C-curve external fuse
2.4 A at 120 VAC/1.2 A at 240 VAC rated current
20 to 90% RH, non-condensing relative humidity
93% efficiency
Less than 1% load regulation
Less than 260 mV ripple and noise
Less than 34 A / 0.66 A2s inrush peak current
Greater than 20 ms at 240 V hold up time
Greater than 33 VDC over voltage protection
Greater than 600,000 hr MTBF
Air convection, 50 mm distance top/bottom, 20 mm side cooling
Metal housing material
Parallel operation
Short circuit: hiccup mode
Suitable for industrial applications especially where high inrush power is required, as well as when compact housing or extended reliability are desired
T6, 3 A (non-replaceable) internal fuse

Specifications

Amperage Rating:	10 A
Case Material:	Aluminum
Country of Origin:	TW
Depth:	133 mm
Frequency Rating:	47 to 63 Hz
Height:	115 mm
Input Voltage:	120/240 V
Mounting Type:	TS32/TS35 DIN Rail
Output Voltage:	24 VDC
Power Rating:	240 W
Series:	Compact
Width:	40 mm
