723701 LST

Name: 723701 LST
Brand: Lutze
SKU: 723701 LST
Price: 349.01 USD
Availability: OutOfStock

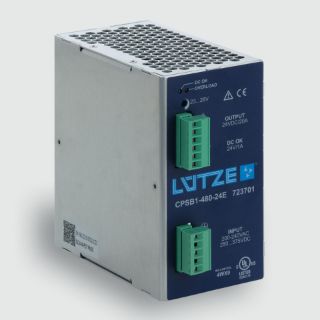

Actual Product May Vary From Image

Product Details

Manufacturer:

Lutze

Manufacturer part number:

723701

CBT Inventory

Vendor Inventory

Availability:

1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

$349.01 / EA

Description

Brand Name

LUTZE

Type

Primary Switched

Description

LUTZE, 723701, Power Supply, Primary Switched, Series: Compact, 200/240 V Input, 24 VDC Output, 480 W Power, 20 A, 47 to 63 Hz Frequency, TS32/TS35 DIN Rail Mounting, Aluminium Case, 73 mm Width, 149 mm Depth, 140 mm Height

Application

For industrial applications

Standards

cULus E249179 | EN 60950/50178/55011/55022/60529 | IEC 61000-4-2/3/4/5/11 | IEC 60068-2-6 | IEC 60068-2-27

Features

-40 to 70 deg C operating/-40 to 80 deg C storage
2.9 A at 200 VAC/2.5 A at 240 VAC rated current
20 to 90% RH, non-condensing relative humidity
6.3AT or MCB 6A C-Curve or 4A D-curve external fuse
91% efficiency
Less than 1% load regulation
Less than 29 A / 0.61 A2s inrush peak current
Less than 50 mV ripple and noise
Less than 50 ms @ 240 VAC hold up time
Greater than 33 VDC over voltage protection
Greater than 500,000 hr MTBF
Air convection, 100 mm distance top/bottom, 20 mm side cooling
Metal housing material
No internal fuse
Parallel operation
Short circuit: hiccup mode
Suitable for industrial applications especially where high inrush power is required, as well as when compact housing or extended reliability are desired

Specifications

Amperage Rating:	20 A
Case Material:	Aluminum
Country of Origin:	TW
Depth:	149 mm
Frequency Rating:	47 to 63 Hz
Height:	140 mm
Input Voltage:	200/240 V
Mounting Type:	TS32/TS35 DIN Rail
Output Voltage:	24 VDC
Power Rating:	480 W
Series:	Compact
Width:	73 mm
